Fountain Powerboats

34CC

Classic performance. Modern styling.

34'2"
length
9'6"'
beam
418 Gal
fuel capacity
Mercury Triple 500Rs
maximum horsepower

Fishing and Performance

“Versatility” is the one catch-all word that best describes the legendary 34 CC. Yes, runaway top-end numbers give Fountain clear bragging rights, but construction quality and attention to detail are likewise key parts of our performance advantage. Fountain’s three-piece construction, fiberglass stringer grid, and composite cored hull sides won’t flex no matter what the sea conditions. Whether you opt for twins or triples, a long-range 418-gallon fuel capacity means more time on the water for family adventures and less time at the fuel pump.
Specifications
Length: 34'2"
Beam: 9'6"'
Dry Weight (approx): 13,500 Lbs
Fuel Capacity: 418 Gal
Water Capacity: 10 Gal
Bridge Clearance: 98"
Draft (max drives down): 29"
Max HP: Mercury Triple 500Rs
Hardware Features

Rub Rail - Vinyl Extrusion (Black or White), Stainless Steel Insert

Cleats (6) - 8" Pull-Up

Mechanical & Electrical Features

Bilge Pumps (2) - 2000 GPH, Float Switches by Ultra Safety Systems

High Water Alarm - Located Inside Bilge Area

Engine Controls - Mercury DTS, Engine Trim

Fuel Filters - Mercury

Fuel Tank - HD Aluminum, Painted for Corrosion Resistance, EPA Compliant

Horn - Electric

Propellers - Mercury, Stainless Steel, Performance Matched

Steering - Electric/Hydraulic, Mercury

Trim Tabs - Mercury 380 K-Plane or similar

Wiring - Tinned, Color Coded

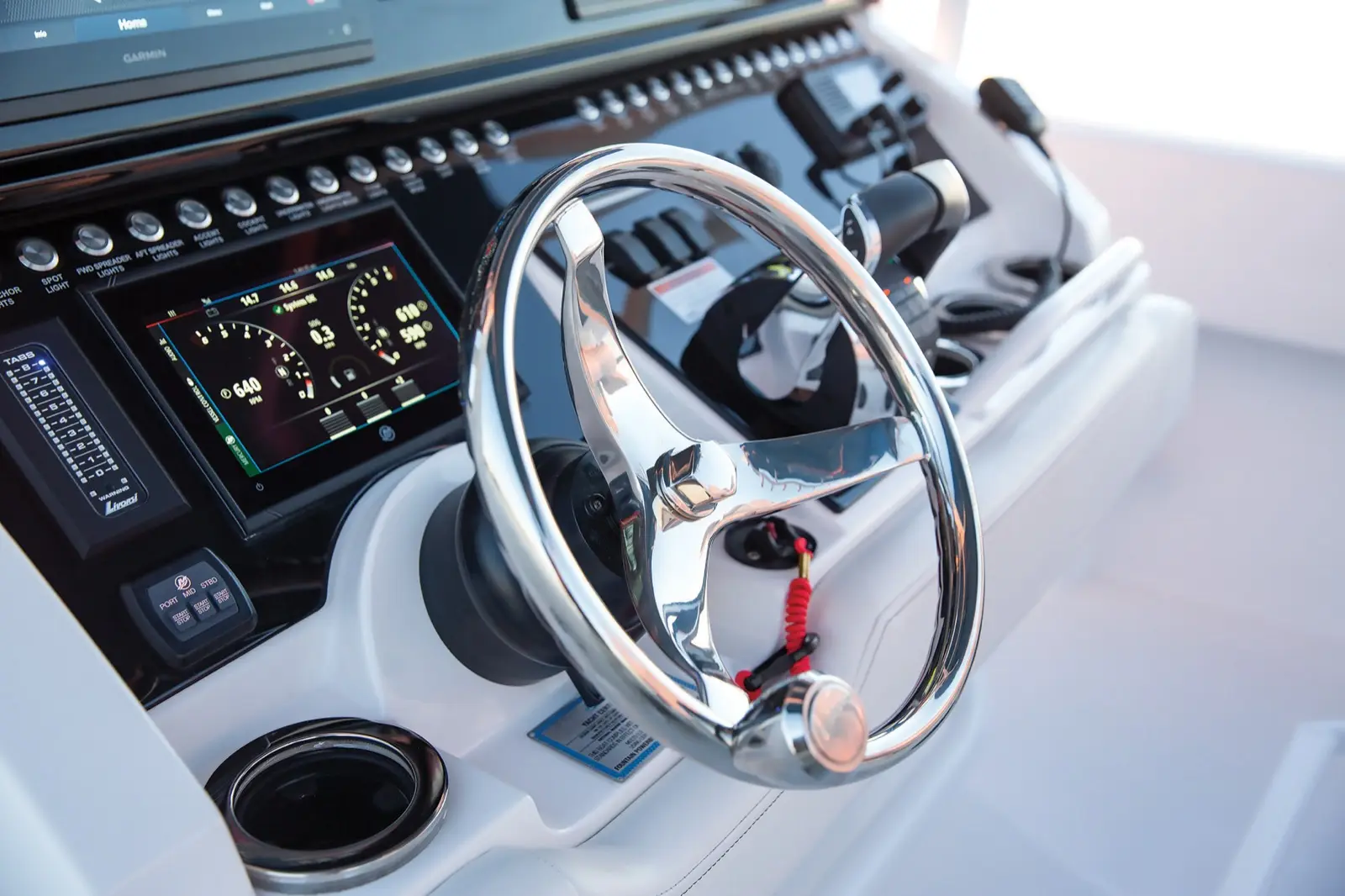

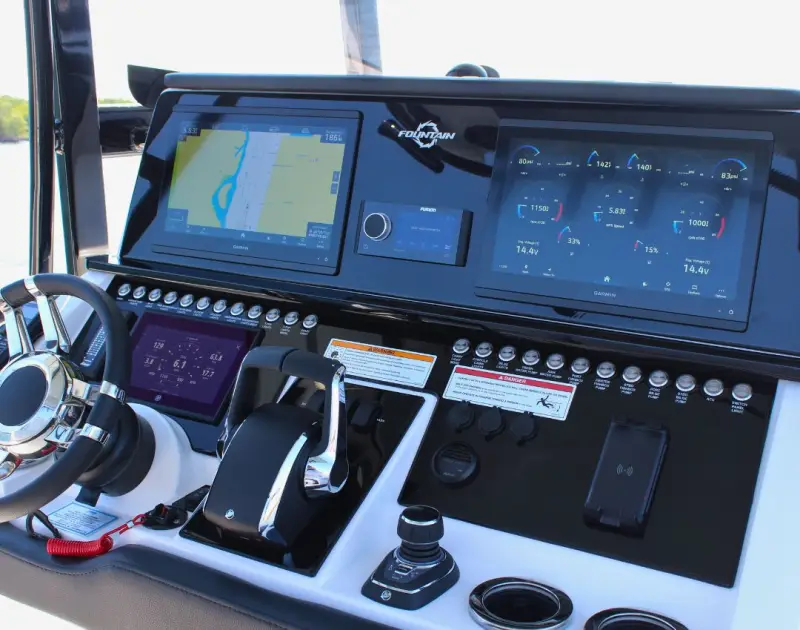

Console Features

Compass, Magnetic

Panel - Carbon Fiber Reinforced

Steering Wheel - Stainless Steel with Knob

Switches - Push Button, LED Indicator Lights

Cockpit Features

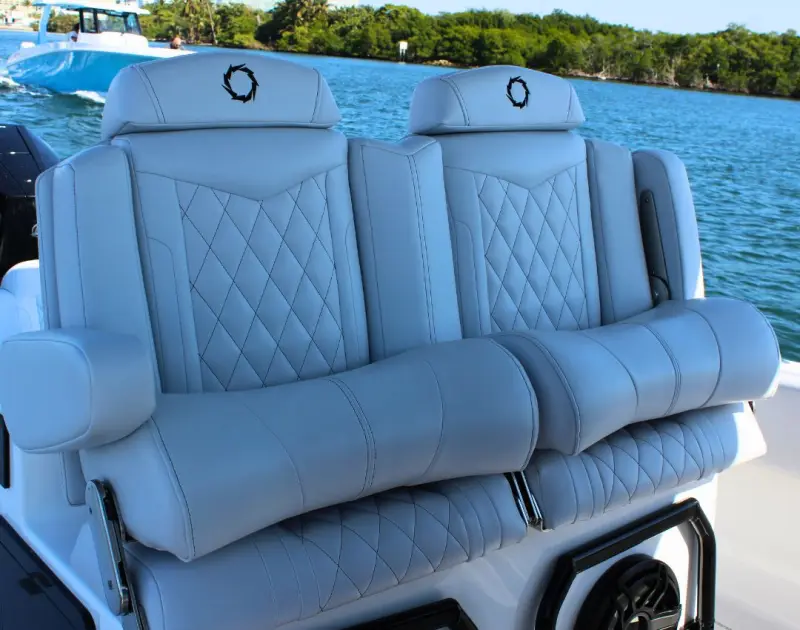

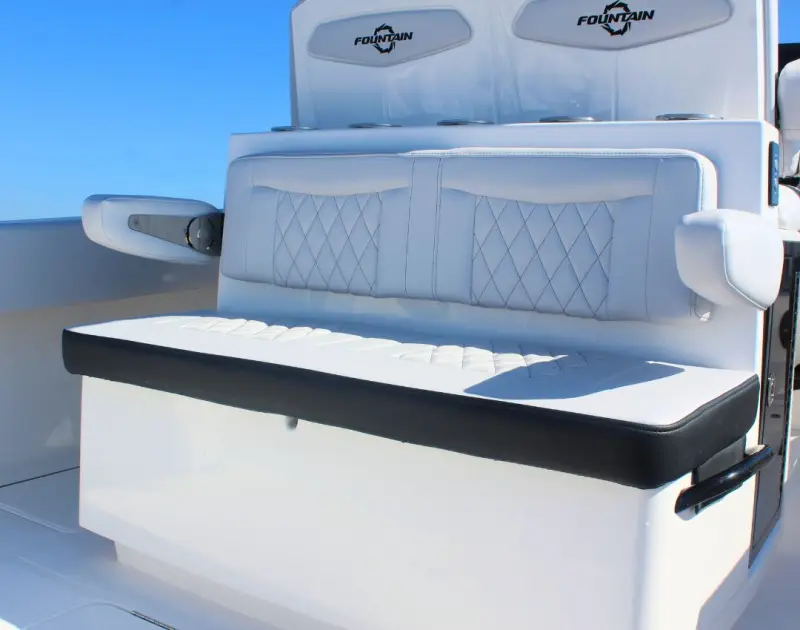

Aft Facing Seat - Upholstered Seat and Backrest, (5) Integrated Cup Holders

Bow Handrails - Recessed

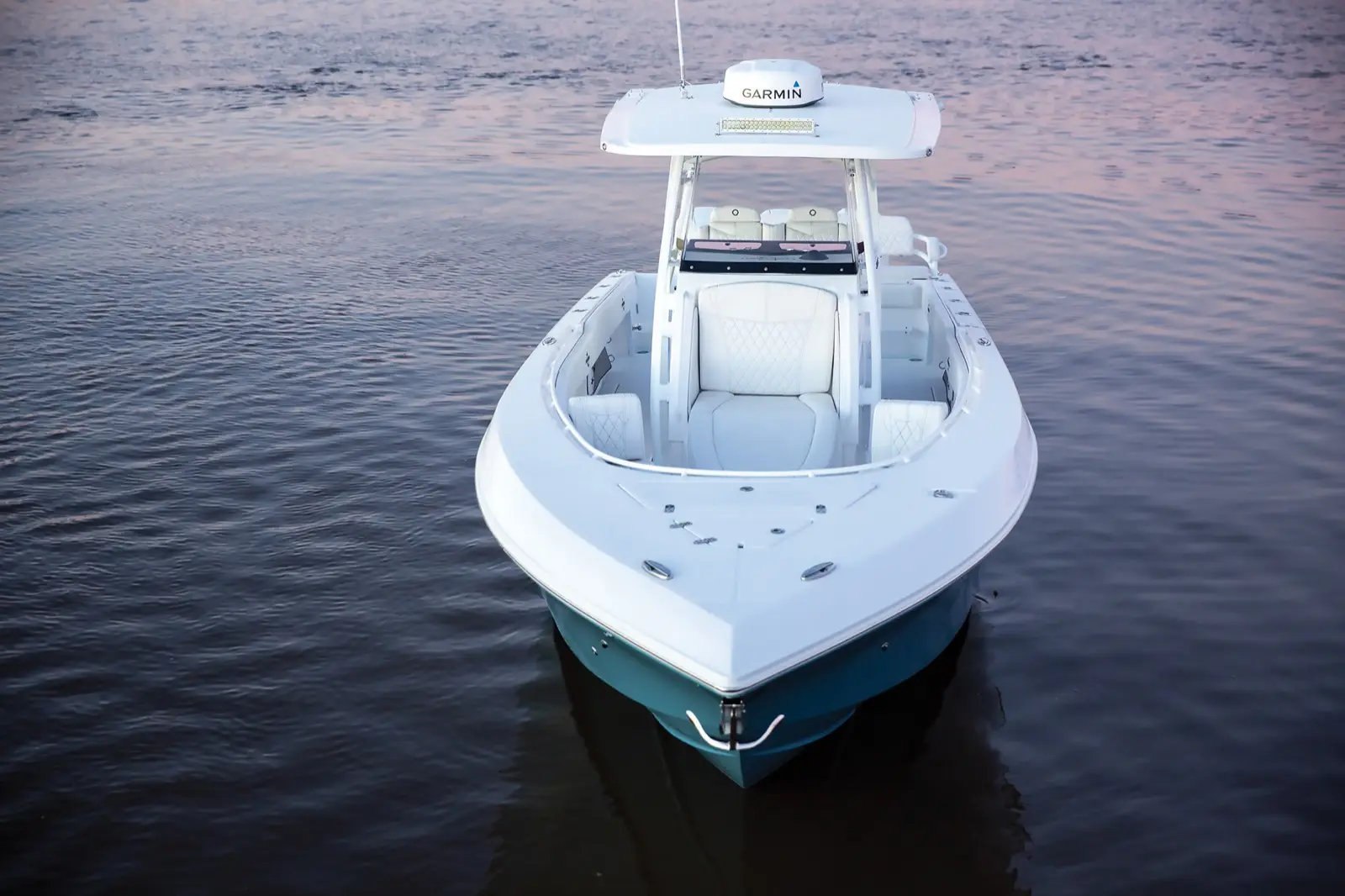

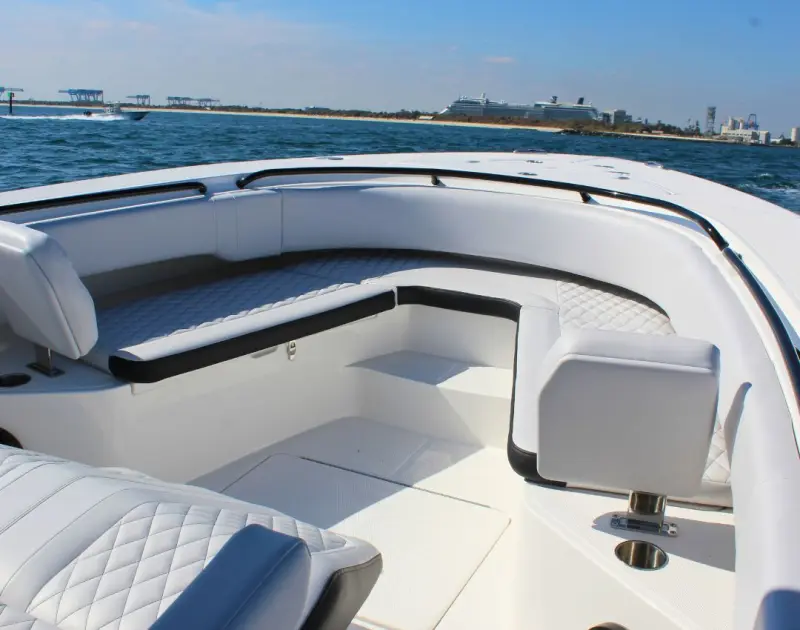

Bow Seating - Storage Underneath

Console Seat - Forward, Upholstered Seat, Backrest

Gunwale Coaming Bolsters - Padded, Port and Starboard

Head - Ceramic Toilet, Overboard Discharge, Fresh Water/Raw Water Holding Tank

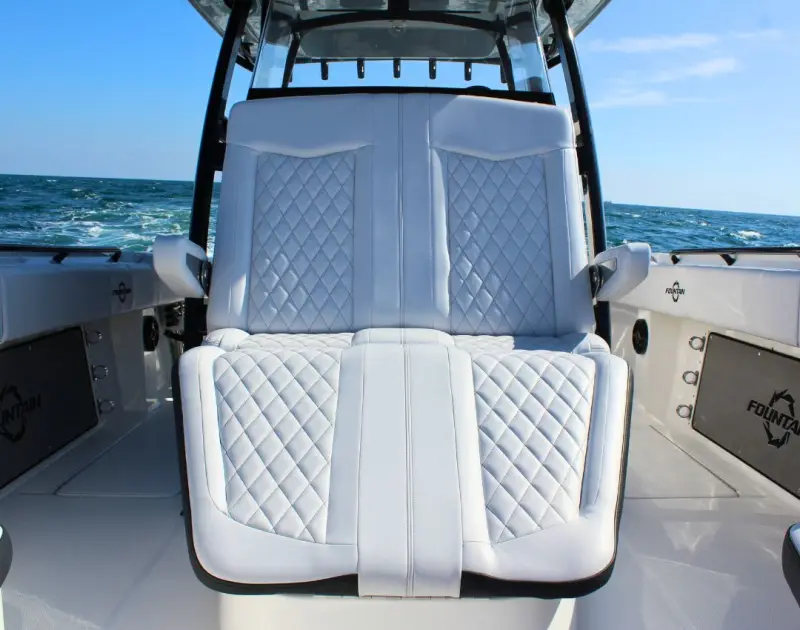

Helm Seat - Flip Up Bolsters, Articulating Arm Rests, Fold Down Foot Rests

Ladder - Safety, Slide-In

Shower - Transom, Pressurized

Sink - Fresh Water

T-Top - Fiberglass, Overhead Storage

T-Top Support Frame - Custom Welded Aluminum

Transom Door - Starboard, Transom at Stern Platform

Washdown - Fresh Water, Raw Water

Lights Features

Cockpit Courtesy, LED

Navigation, LED

Spreader (4) - On T-Top, Forward (2), Aft (2)

T-Top Light Bar - LED, 10K Lumens

Batteries Features

Charging System - All Batteries, Automatic

House Battery (1) - House Bank

Start Batteries - (2) Twin, (3) Triple

NMMA Certified

Positive Lift Hull - Double Step, Pad Keel, Notch Transom

Three Piece Construction - Hull, Liner, Deck

Stringer Grid and Transom - High Density Composite, Fiberglass Reinforced

Cored Inner Liner - Fiberglass, Self-Bailing, Anti-Skid Deck

Bonded - Glued Through Bolted and Tabbed (Deck, Stringer Grid, Hull, Liner)

High Density Cored - Hull Sides, Deck, and Liner

Electronics Features

Garmin Electronics Package:

Displays - Dual, GPSMAP-8616, 16"

Domed Radar - 50Watt Fantom

VHF Radio - 315 with Antenna

Transducer - Airmar B60

Mercury Engine Monitoring - Vessel View 502, Twin Engines Except 500Rs

Mercury Engine Monitoring - Vessel View 903, Triple Engines and Twin 500Rs

Audio Features

Fusion RA 770 Touch Screen Entertainment Center with Built-in Wi-Fi

Amplifier - 800/8 Marine Class D

Amplifier - 600-Watt, Mono Block, Marine Class D

Speakers (4) - M Series Coaxial, 7.7" LED Light Rings

Speakers (2) - M Series Coaxial 6.5" LED Light Rings

Speakers (2) - M Series Coaxial 8.8" LED Light Rings

Speakers (2) - Subwoofer, M Series, 10", LED Light Rings **Unless 71 gallon livewell option is selected under the rear facing seat, then these two 10" subwoofers become two 8" subwoofers**

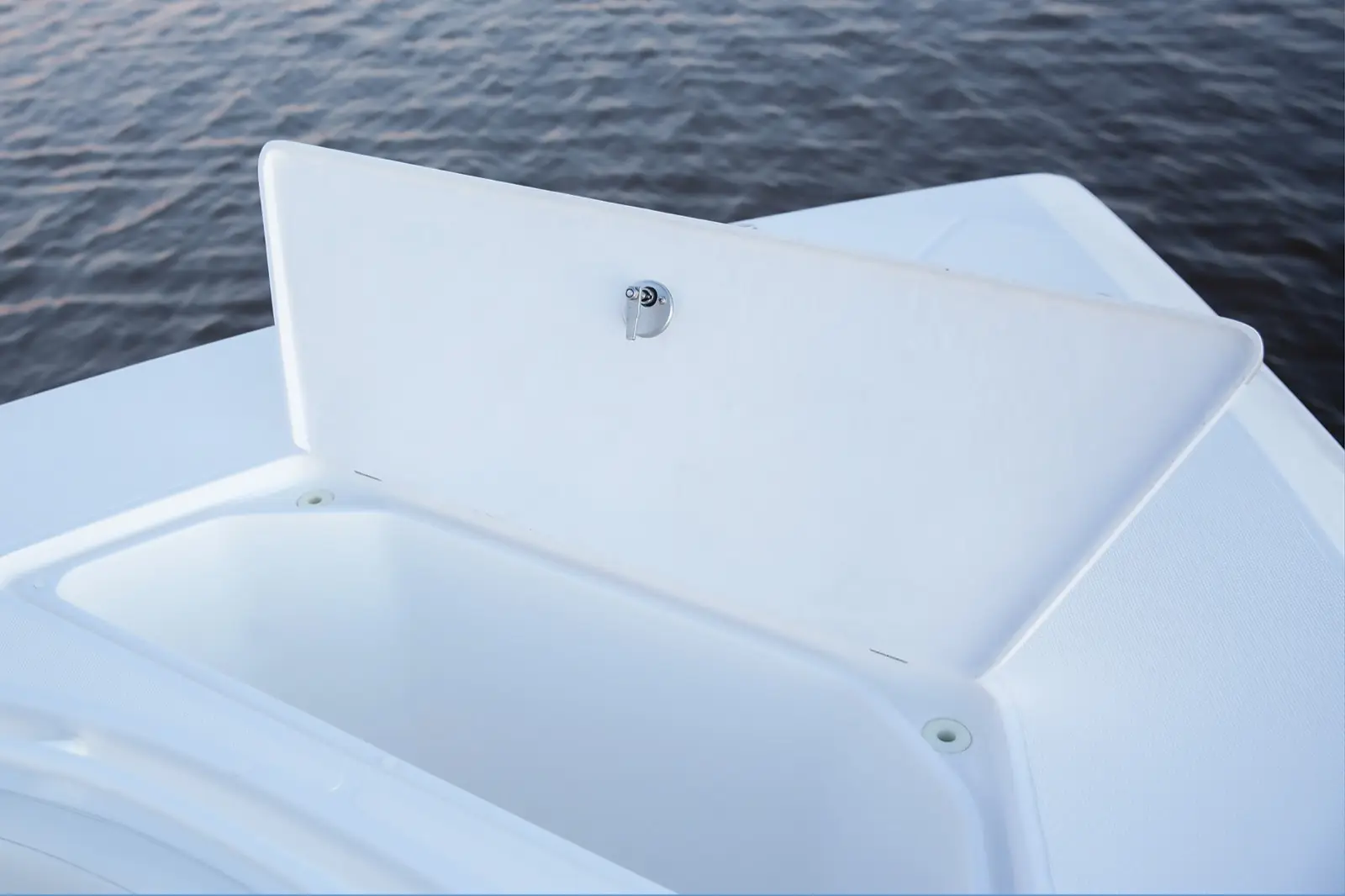

Fish and Storage Boxes (5) - Below Deck, with Overboard Diaphragm Discharge Pumps

Livewells (2) - Aft, Pressurized

Rod and Gaff Storage - Port & Starboard, Protective EVA Foam Mat

Rod Holders (8) - Integral Cupholders, Gunwale Mounted

Rod Holders (8) - Storage Rack, Splashwell Area

Rod Holders (9) - Rocket Launcher aft of T-top

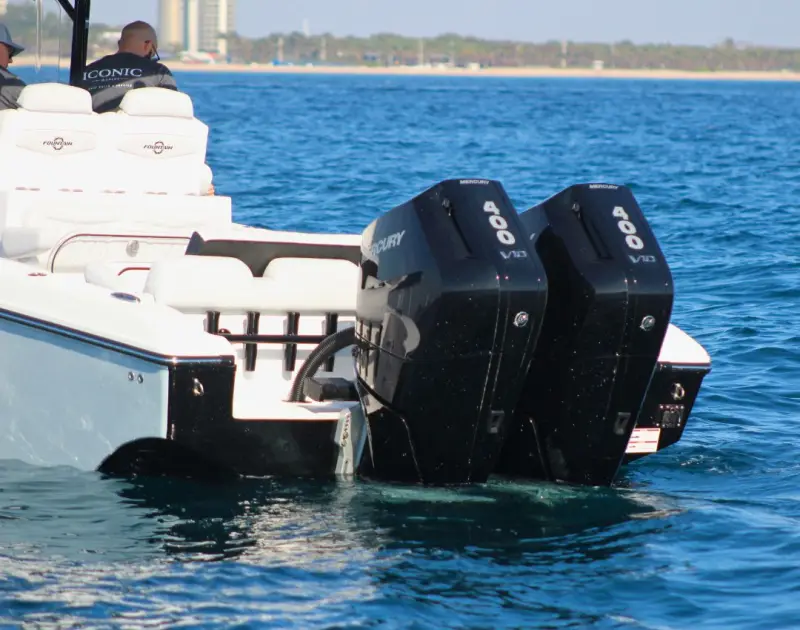

Power Option

Mercury Twin Verado 300M

Mercury Twin Verado 300R

Mercury Twin Verado 400M

Mercury Twin Verado 400R

Mercury Twin Verado 500R

Mercury Triple Verado 300M

Mercury Triple Verado 300R

Mercury Triple Verado 400M

Mercury Triple Verado 400R - With "HD" Gearcases

Mercury Triple Verado 400R - With "Sportmaster" Gearcases, Jackplates, and Blueprinted Bottom

Mercury Triple Verado 500R - With R Drive "CS" Gearcases

Mercury Triple Verado 500R - With R Drive "CS" Gearcases, Jackplates, and Blueprinted Bottom

Outrigger Bases - Gemlux BA-12, Pair

Outrigger Poles - Gemlux 16' Deluxe Internally Rigged Hybrid Carbon Fiber

Outrigger Poles - Gemlux 18' Deluxe Collapsible Hybrid

Electric Reel Outlets (2) - Aft

Electric Reel Outlets (2) - Amidship

Electric Reel Outlets (2) - Forward

Livewell 30 gallon - Under Rear Facing Seat

Livewell 71 gallon - Under Rear Facing Seat

Rod Holders (6) - Additional at forward Gunwales

Sea Chest Upgrade for Livewell System

Additional Aft Support for T-top Including 2 Rod Holders

Console & Helm Line Item

AIS 800 Blackbox Transceiver

Autopilot - Hydraulic, Full Function (Controlled from Garmin Screens)

Autopilot Controller - Dash Mounted, GHC50

Dome Radar 50Watt Fantom - Black

Dome Radar 50Watt Fantom - White (std)

Open Array Radar - 120WATT, 4' Beam (white only)

Open Array Radar - 250WATT, 4' Beam (white only)

Open Array Radar - 50WATT, 4' Beam (white only)

Joystick Steering TWIN Engine, Mercury JPO Electric Steering (Autopilot Included)

Joystick Steering TRIPLE Engine, Mercury JPO Electric Steering (Autopilot Included) *Not Available on All Engine Packages*

Standard Hydraulic Mercury Steering

Stainless Steel Wheel with "Speed Knob"

Stitched, Leather Wrapped Steering Wheel - Black

Stitched, Leather Wrapped Steering Wheel - White

Sionyx Nightwave Ultra Low Light Camera

Transducer B175H in Lieu of B60 Transducer

Transducer B175L - Additional

USB Outlet in Console Topper Glove Compartment - Additional

USB Outlet in Dash - Additional

Wireless Phone Charger - Dash Mounted (Holds Phone in Place)

Mercury 903 Vessel View (Replaces 502 Vessel View on Twin Engine Packages)

Tops & Enclosure Line Item

Canvas - Dash and Helm Seat Cover - Black

Canvas - Dash and Helm Seat Cover - Light Gray

Sailshade - FWD Cockpit, Black

Sailshade - FWD Cockpit, Light Gray

SureShade - Electric, Aft of T-Top with Black Fabric

SureShade - Electric, Aft of T-Top with Light Gray Fabric

SureShade - Electric, Aft of T-Top with Linen Fabric

Comfort & Convenience Line Item

Portlight - In Center Console, Opening Window, Screened

Dive Door - Starboard Side Cockpit with Ladder

Windshield Wiper

Furniture & Flooring Line Item

Aft Bench Seat (Replaces STD Transom Livewells)

Transom Seat - On Top Of Livewells, With Upholstered Seat Bottom and Backrest, Removable

Forward Extended Console Lounge Seat

LS Package (Includes AFT Bench Seat and FWD Extended Console Lounge Seat)

Hardware & Lighting Line Item

Bow Thruster (INSTALL HATCH IN FWD FLOOR FISH BOX FOR ACCESS TO BOW THRUSTER)

Engine Flushing System - Reverso, Automatic Outboard, QUAD Engine

Engine Flushing System - Reverso, Automatic Outboard, TRIPLE Engine

Fender Attachments (6) - Quick Release Push Pin Locks

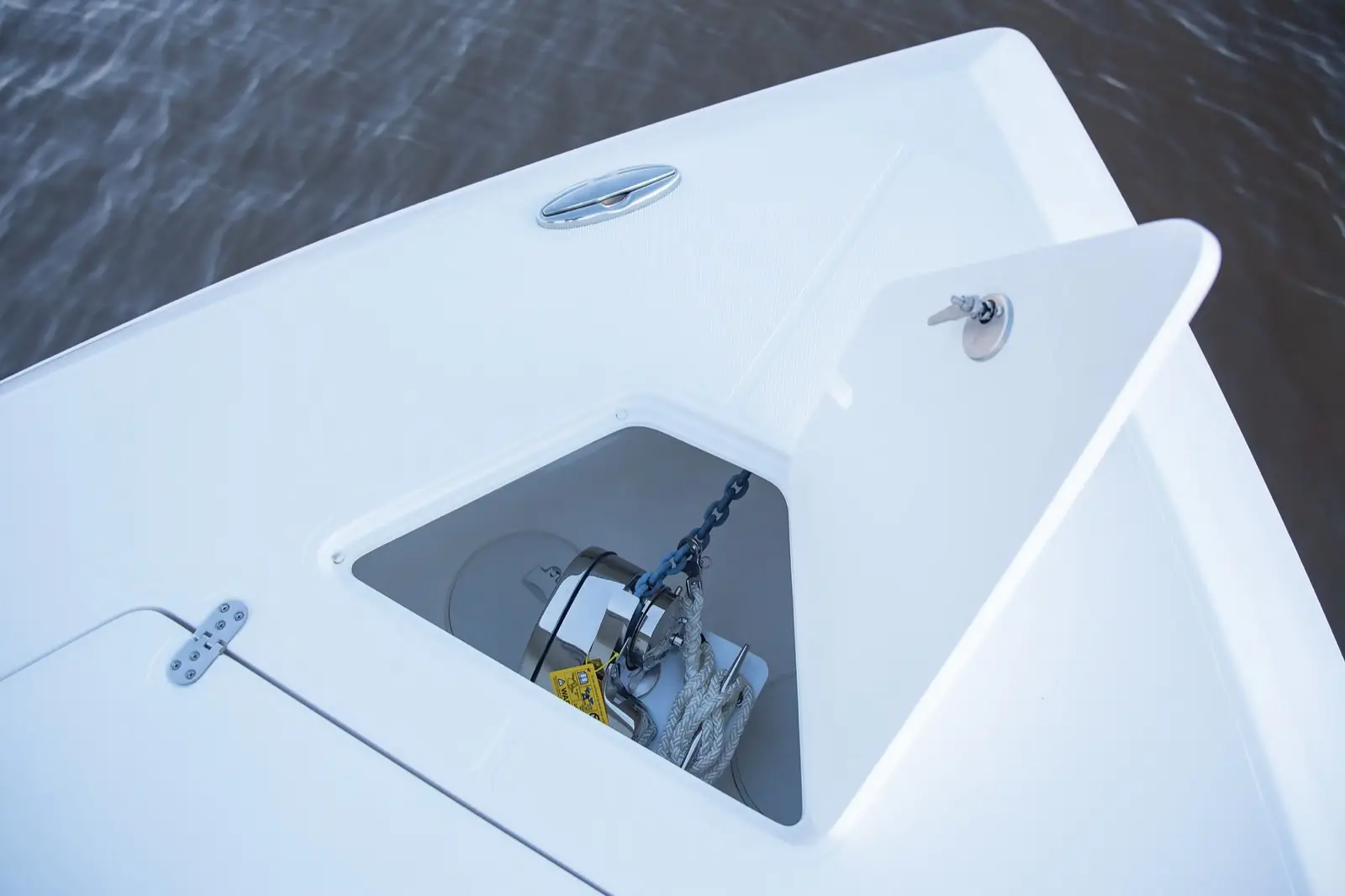

Windlass - Thru Hull, Striker Plate; Anchor - Polished Stainless Steel Plow; Rode Kit - 15' of 5/16" Galvanized Chain, 150' of 5/8" 8-Strand Braided

Lights - Underwater, RGB, Lumitec Sea Blaze 2

Pure muscle.
Mercury Racing is Fountain’s exclusive power partner, unleashing performance that leaves the competition in your wake. Each boat is tuned to perfection at our Washington, NC facility, which creates an unmatched hull-to-power ratio that squeezes every ounce of performance from Mercury’s race-bred turbos and superchargers.
