39DX

Luxury meets performance

+ Customize Now

39'

length

11'3"

beam

425 Gal

fuel capacity

Mercury Triple 500Rs

maximum horsepower

You Can Have It All

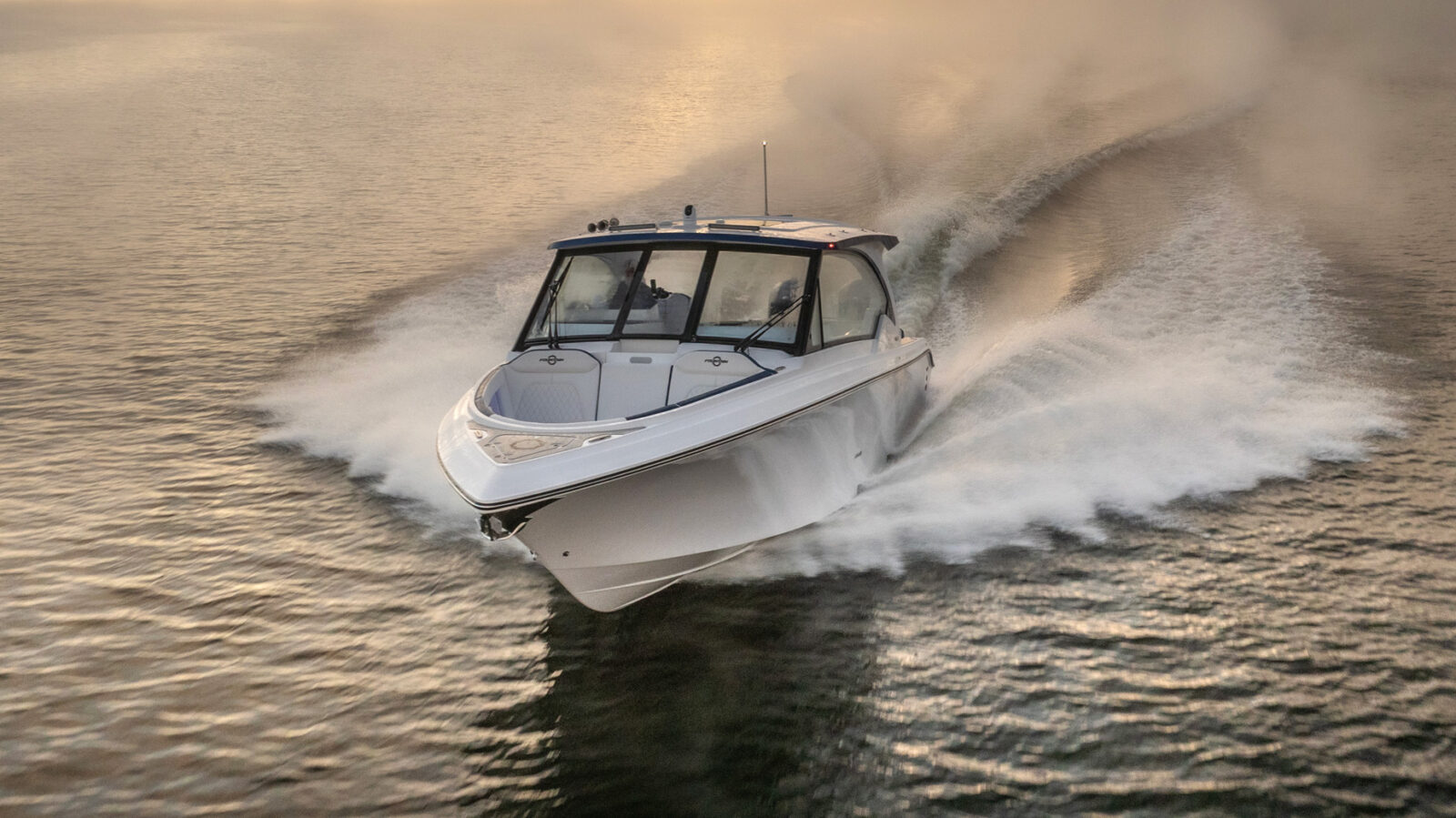

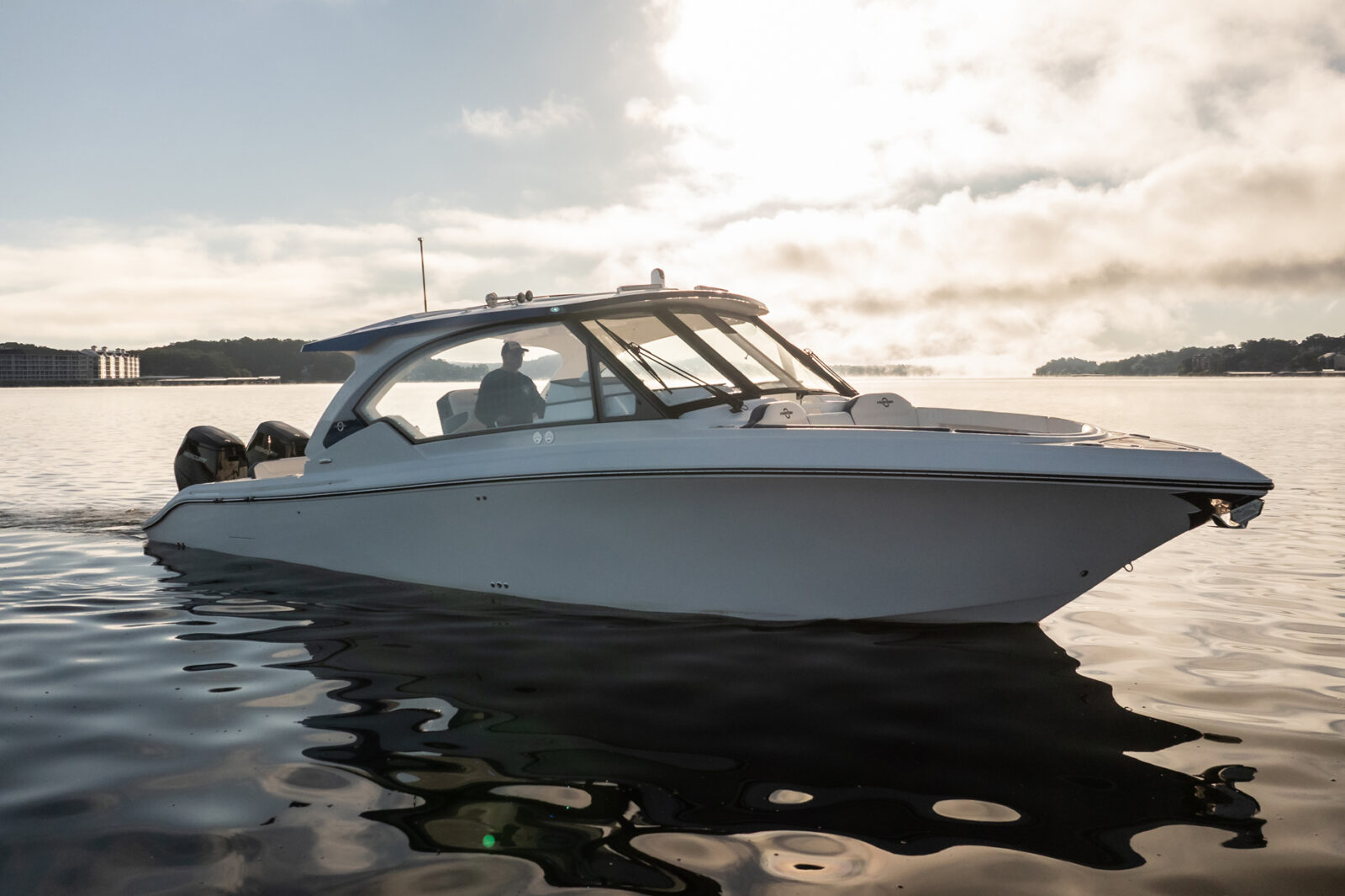

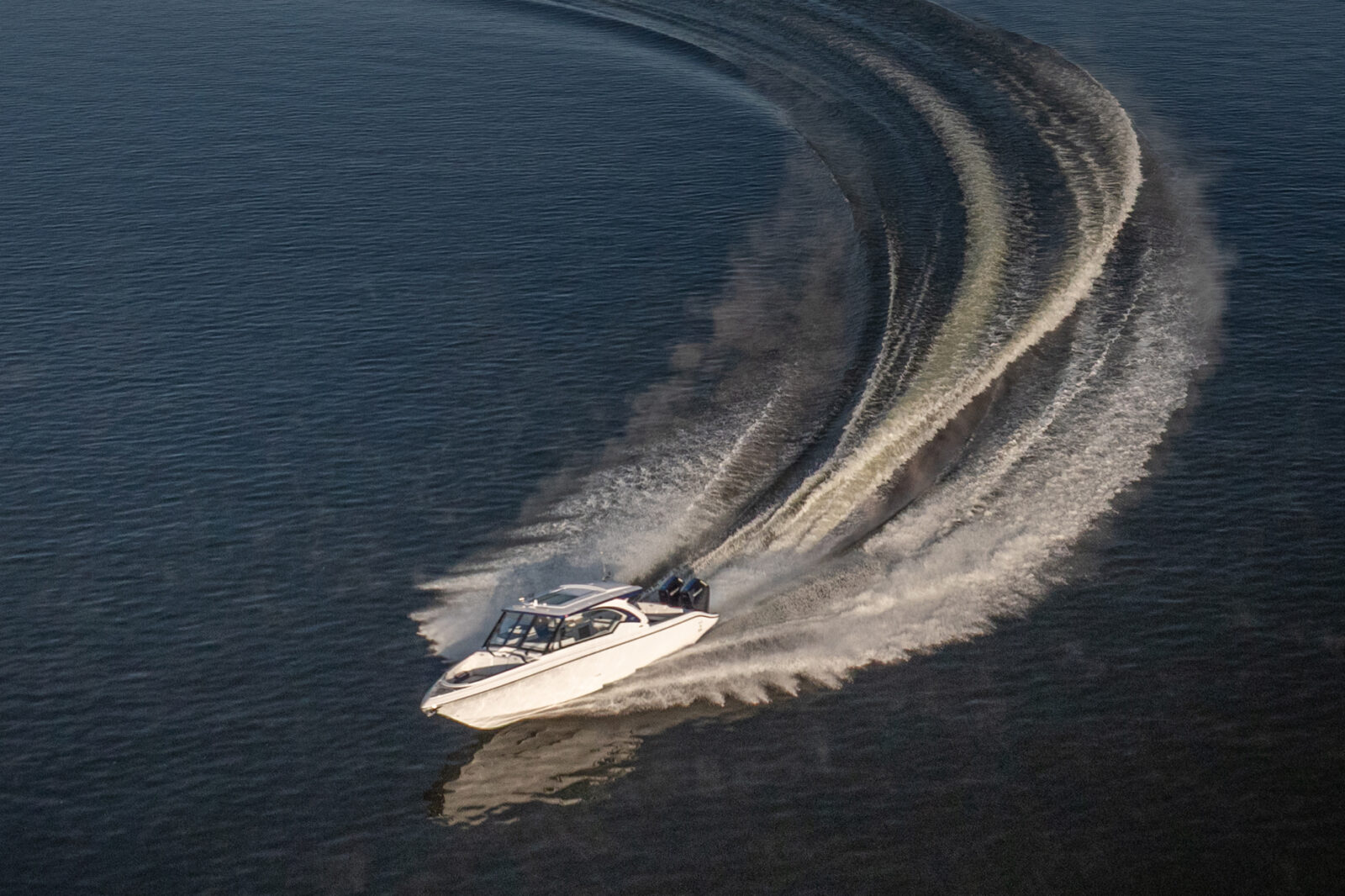

The incredible 39DX charts a new course in styling, performance, and utility for dual console boat design. With power options ranging from triple 300Ms up to 500Rs, the boat is at home on lakes, rivers, and offshore. Designed for all-season use with the optional air conditioner/heater, the 39DX features a molded hardtop with a sunroof, a full-height wraparound glass windshield, twin cabins, and a gourmet-quality galley. Sporting 17 gel and paint color choices, custom graphics, optional Sport interiors, four seating layouts, and one of the biggest active cockpit areas ever seen at this length, the DX is the standard by which dual consoles are measured.

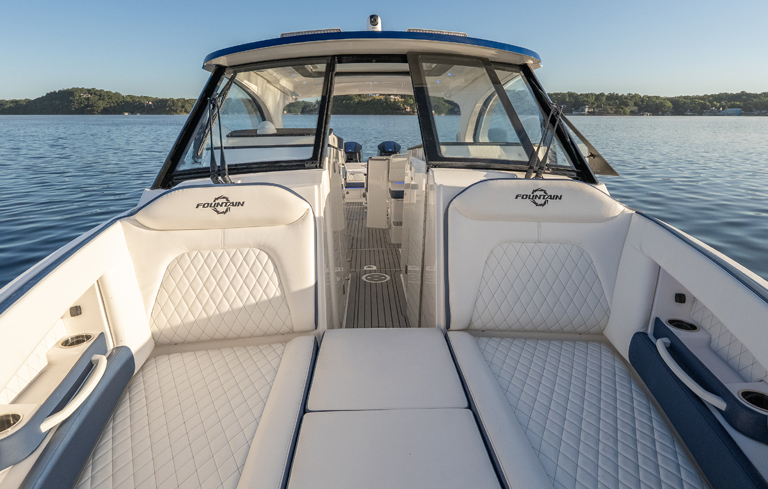

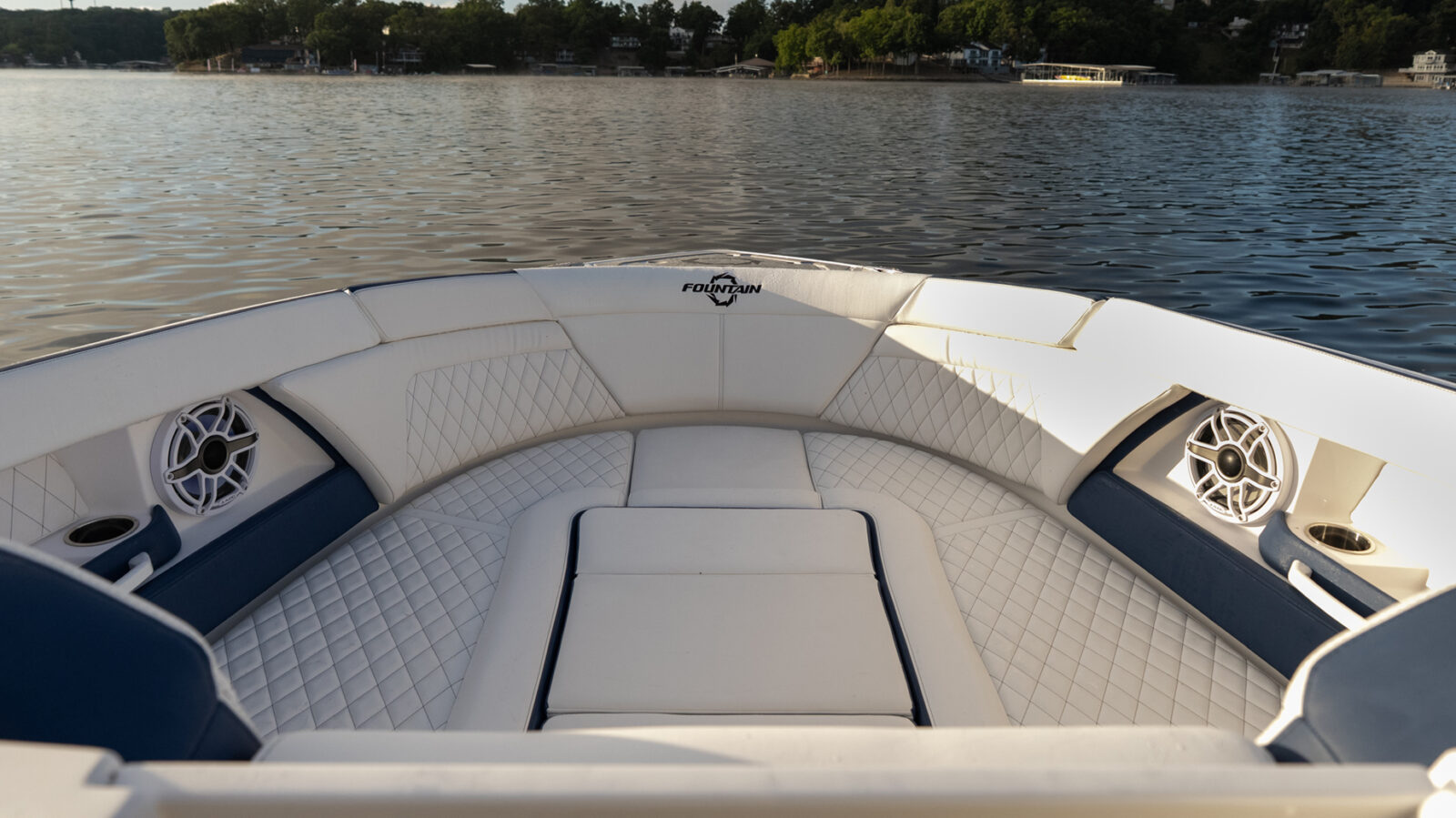

Wrap-around bow seating with removable cushions is adaptable to cruising or fishing pursuits

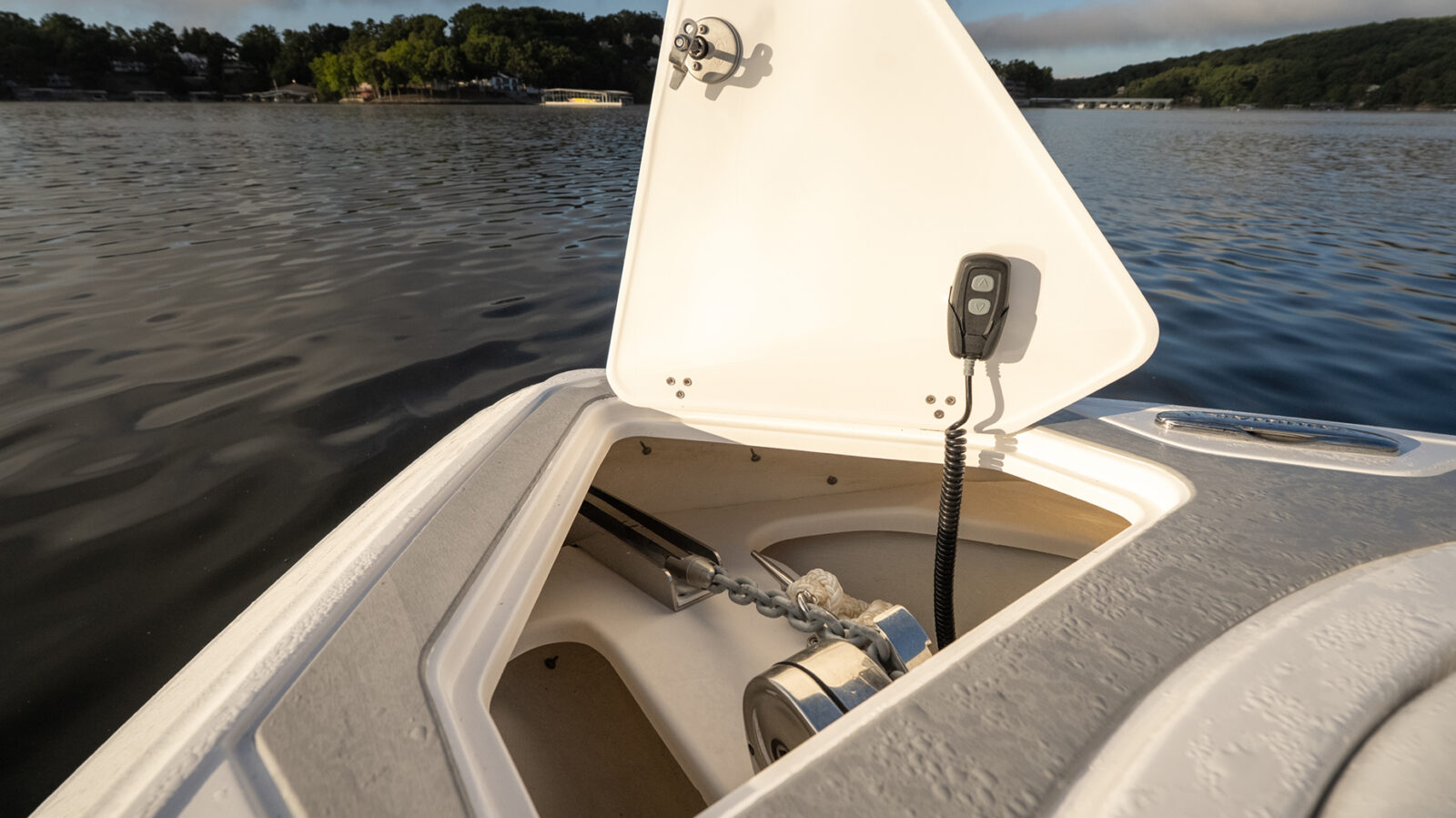

Standard windlass anchor control system complete with anchor locker with integrated bow chute, stainless steel anchor, and 165' rode kit for effortless anchoring

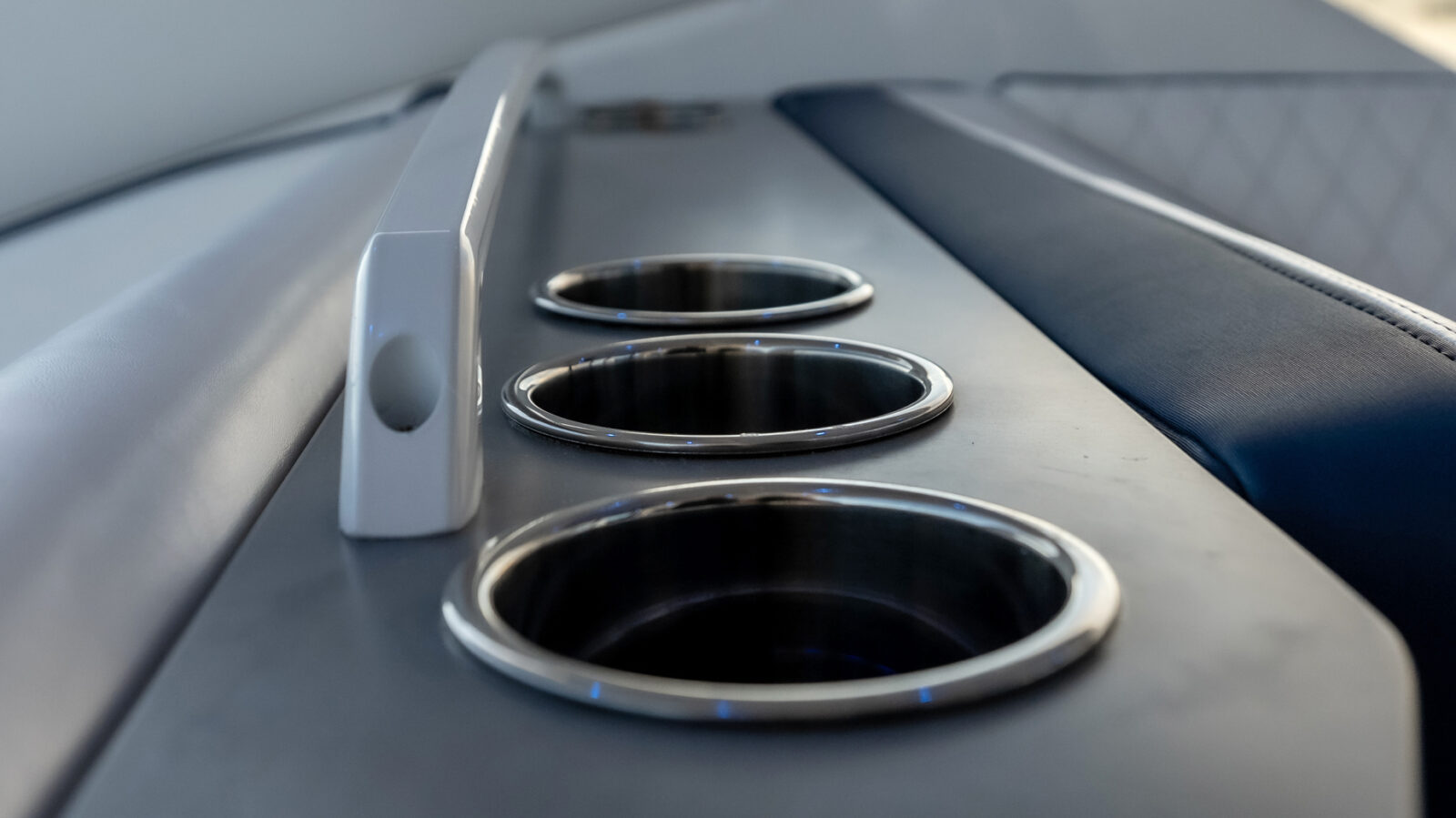

Accent lighting features both on the hardtop and throughout the salon, lighted cupholders, and courtesy lights throughout make deck navigation effortless, day or night

Luxury salon featuring corian countertops, sink, electric grill, drawer refridgerator, and wraparound after seating with underseat storage

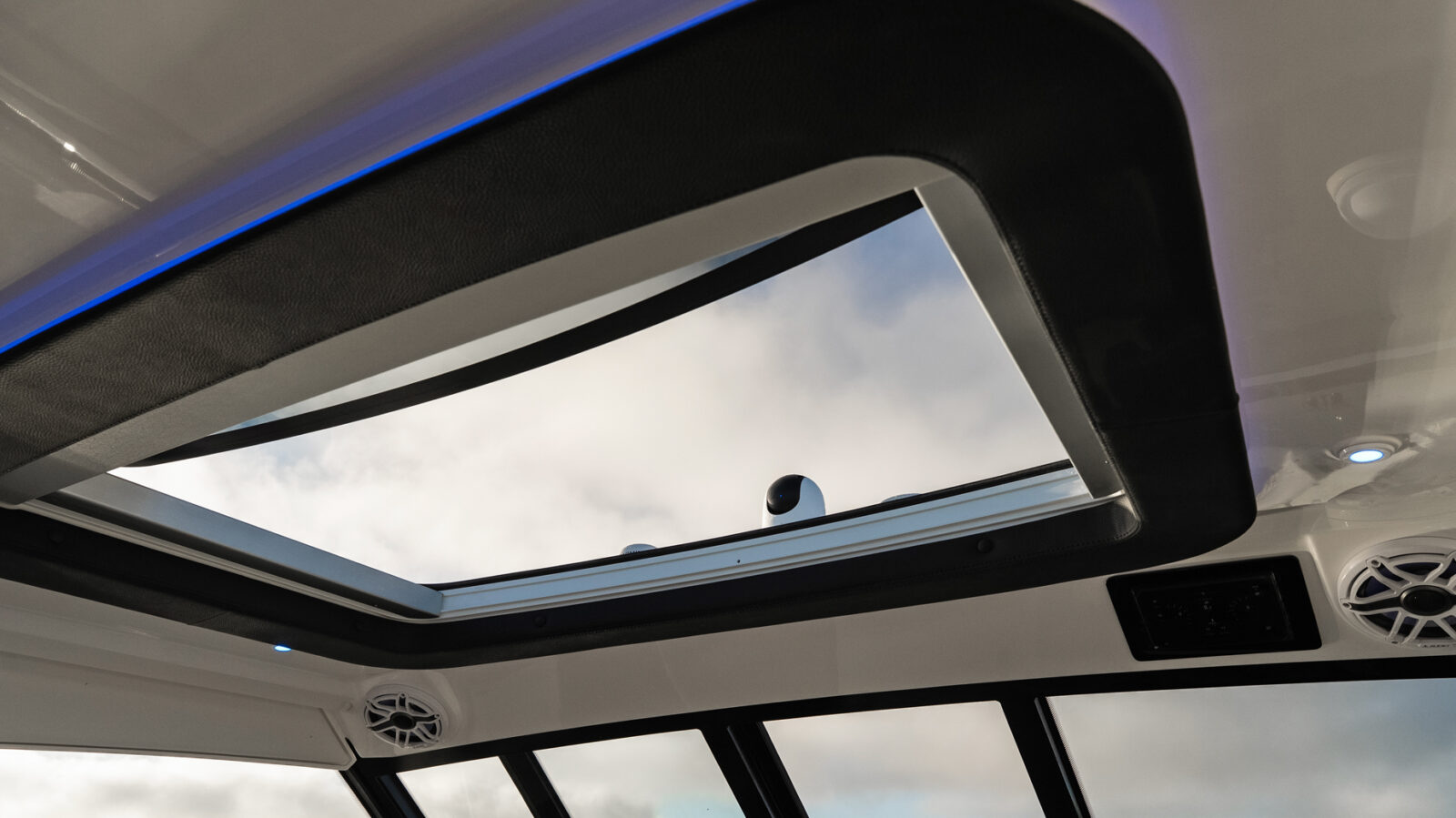

Relax with complete sun coverage with standard electric sliding sunroof and forward sail shade coverage options available

Extensive Fountain lighting package: RGB courtesy lights, cockpit and cabin accent lighting, underwater light kit, and additional LEDs throughout make nighttime cruising both safe and stylish

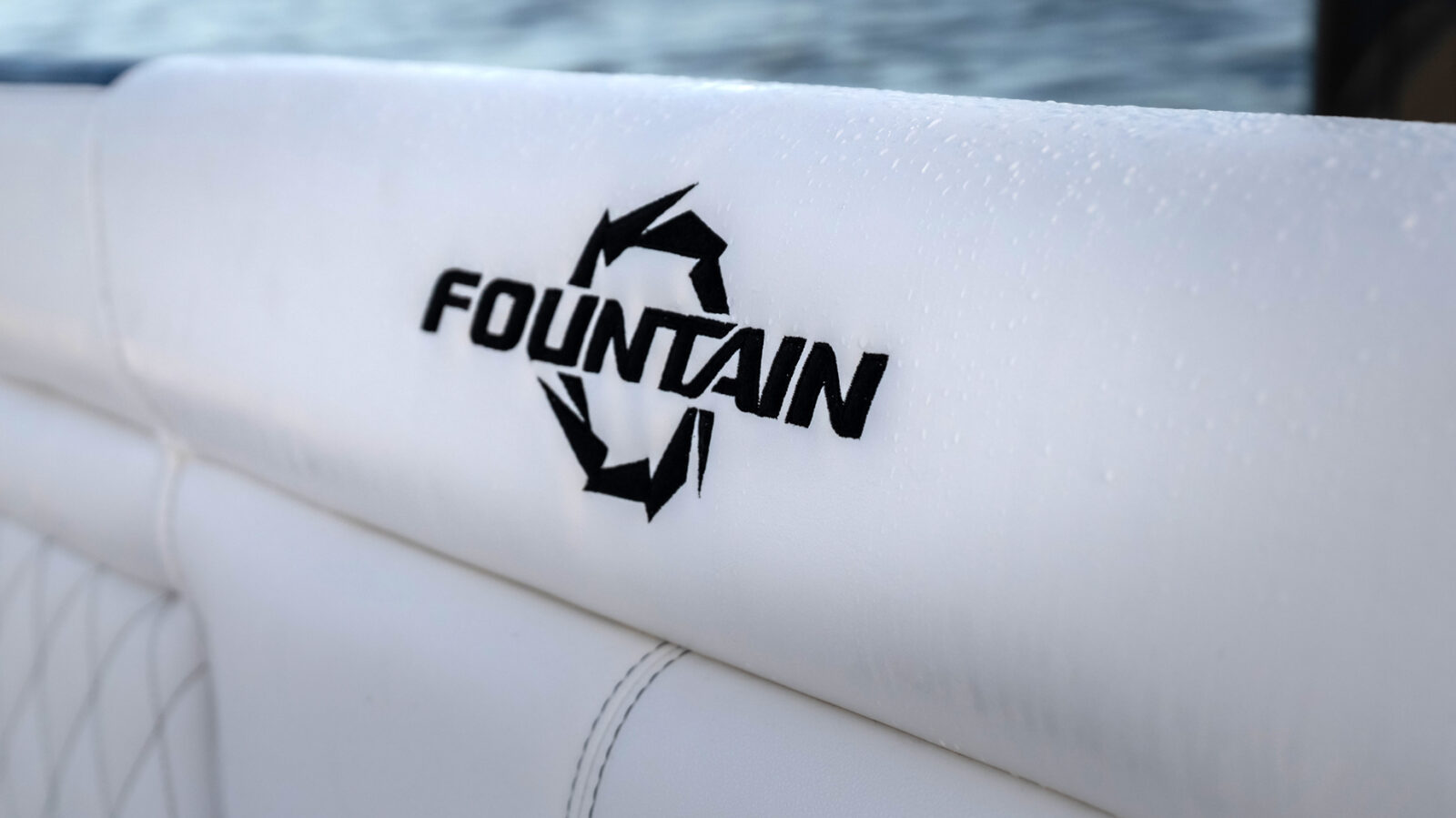

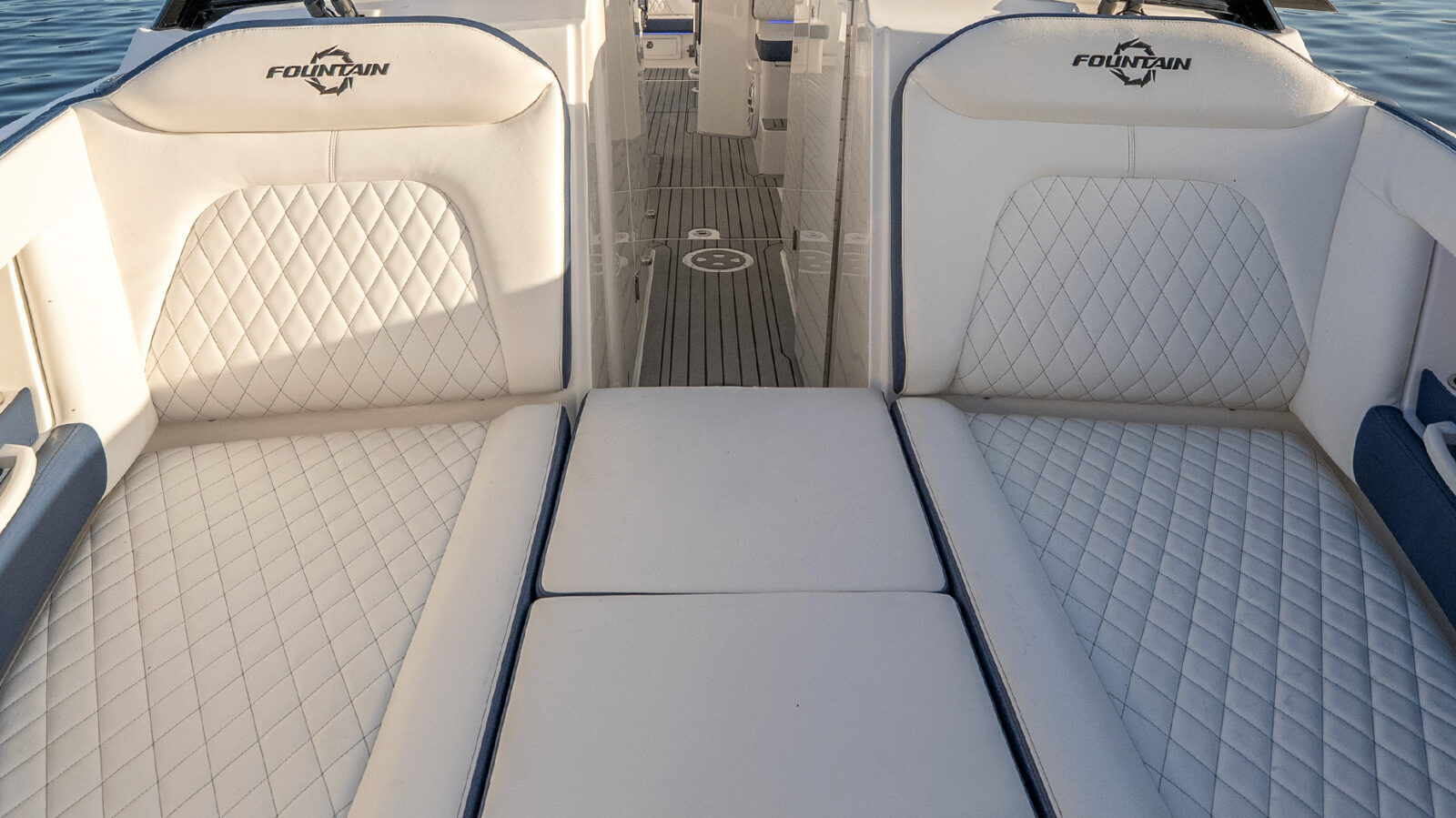

Made in the USA: Fountain hand stitched upholstery is adaptable to any hull, with a variety of custom designs, inlays, and embroidery available for beautiful bow to stern aesthetics

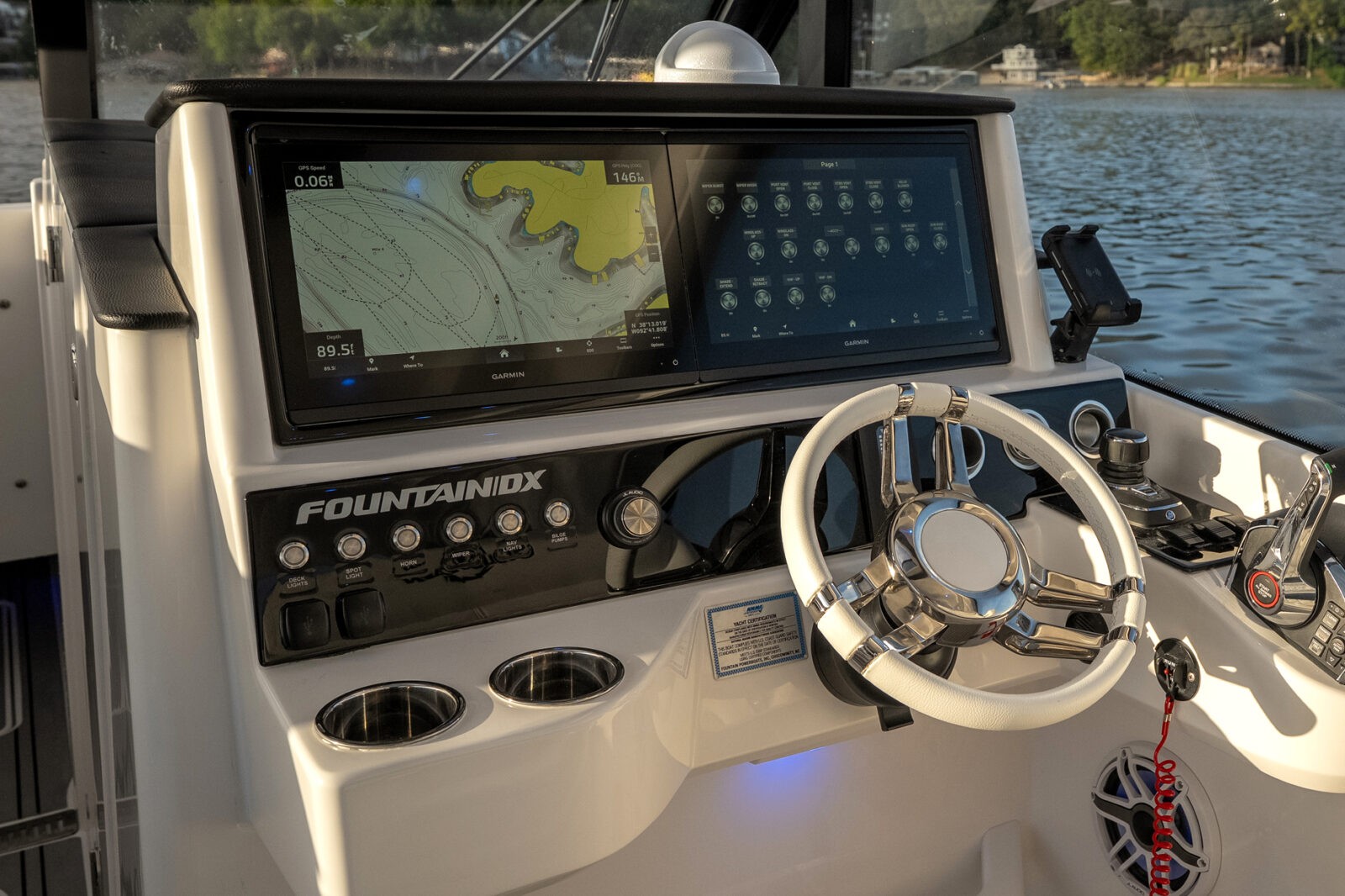

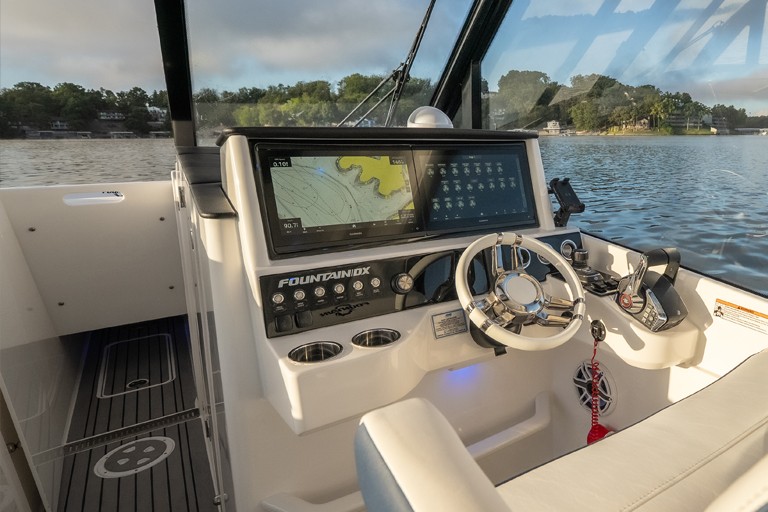

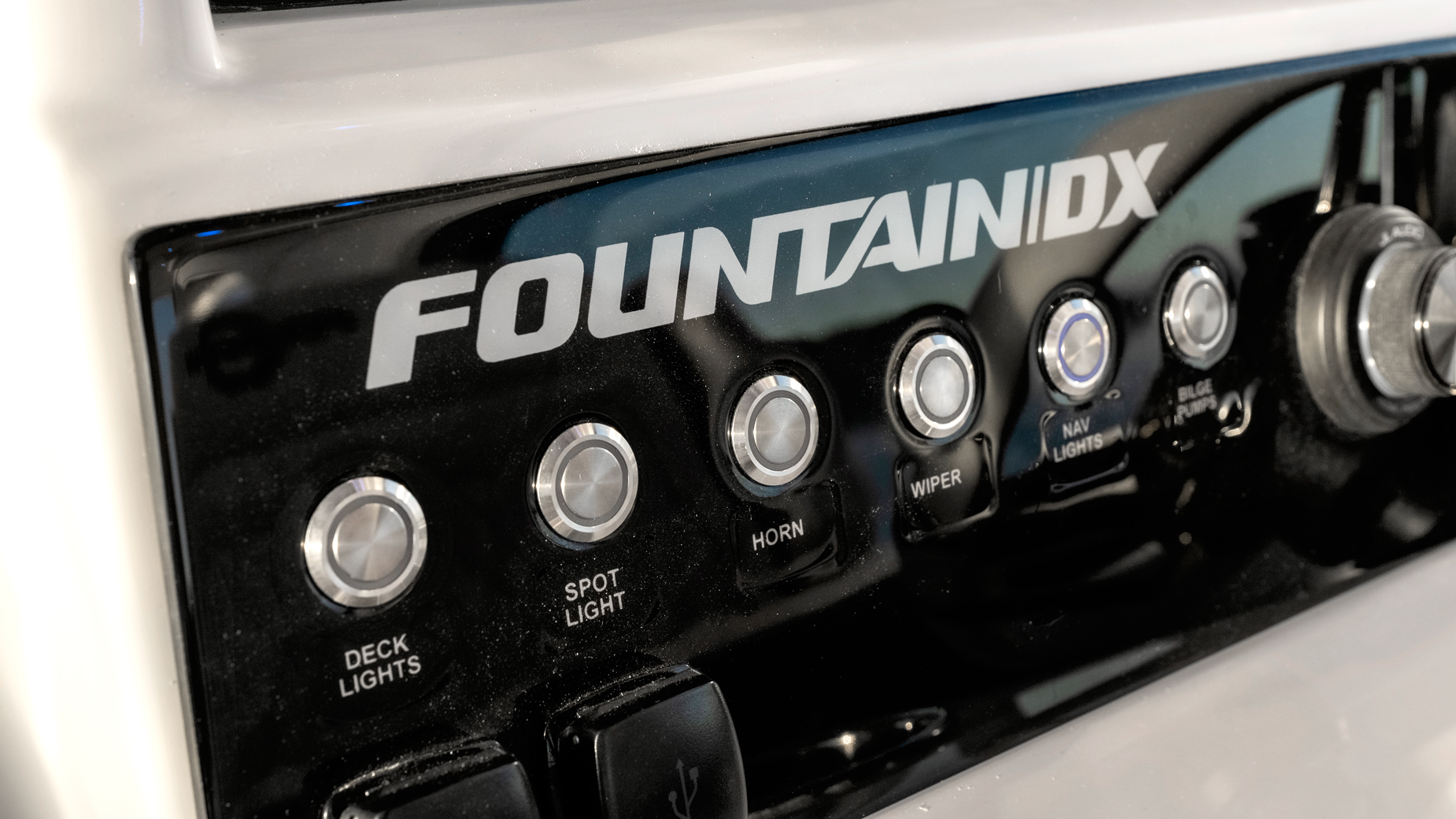

39DX console comes with duel Garmin GPSMAP 8616s, stainless steel push button switches, trim tab controls, and Fusion media control system

Double wide helm seating with flip up bolsters and fold down armrests

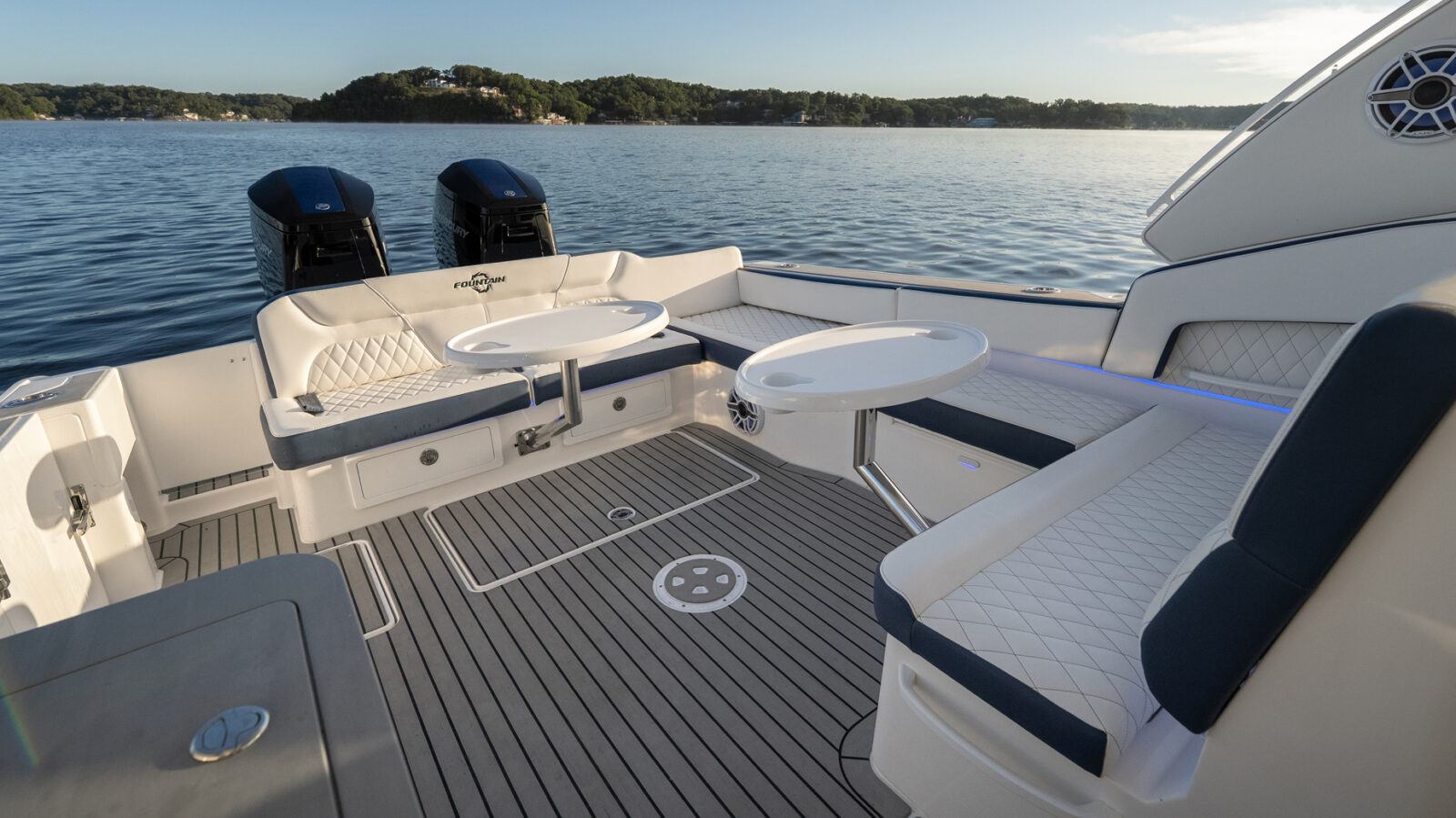

Salon seating available in four different configurations, all with premium custom upholstery. Shown is optional transom bench seat with wraparound L-shaped lounge seating

Wraparound forward bolster seat with removable table with stainless steel arm

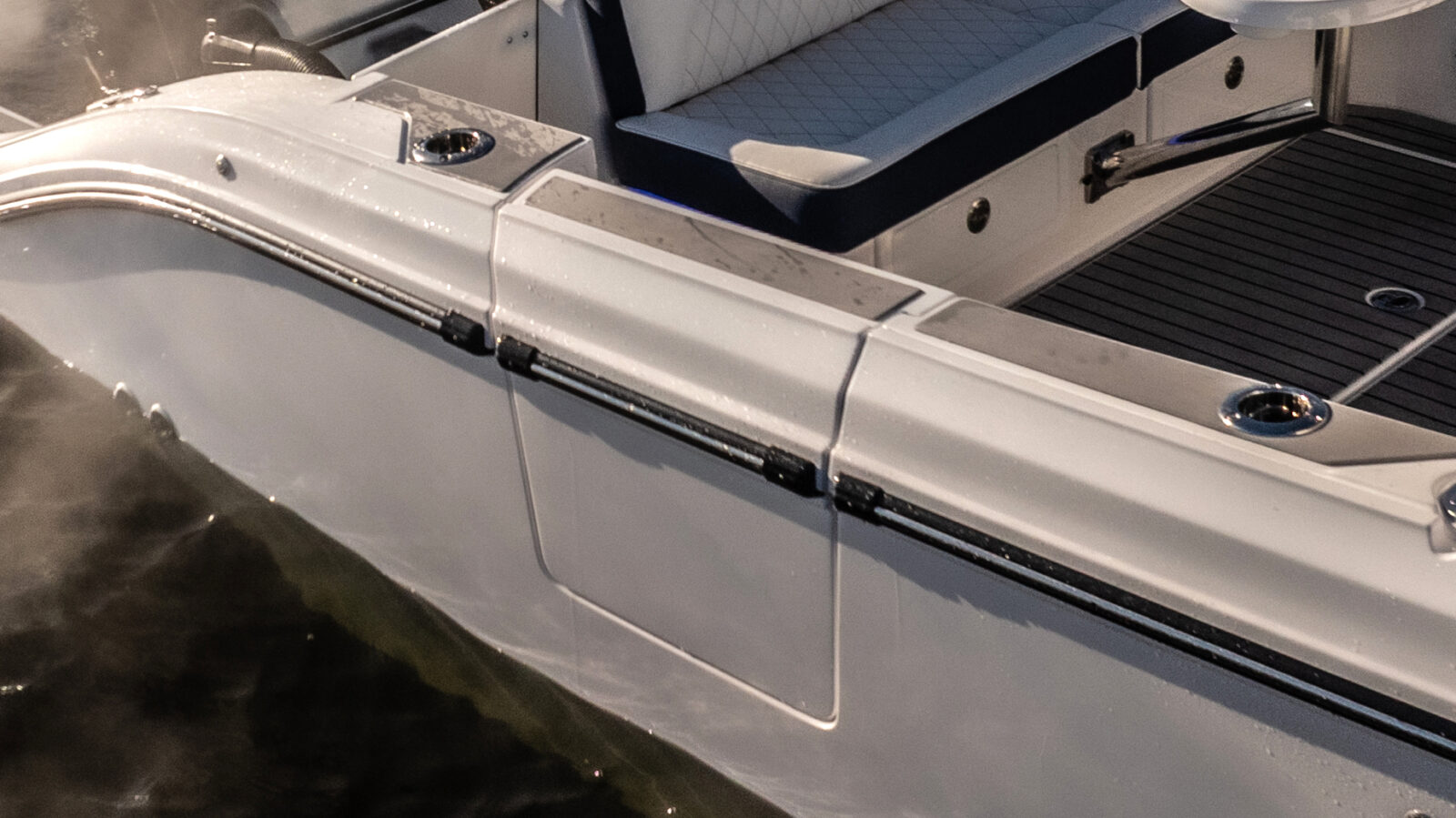

Starboard side dive door opens inward with a convenient folding dive ladder underneath the sole hatch for ease of entry

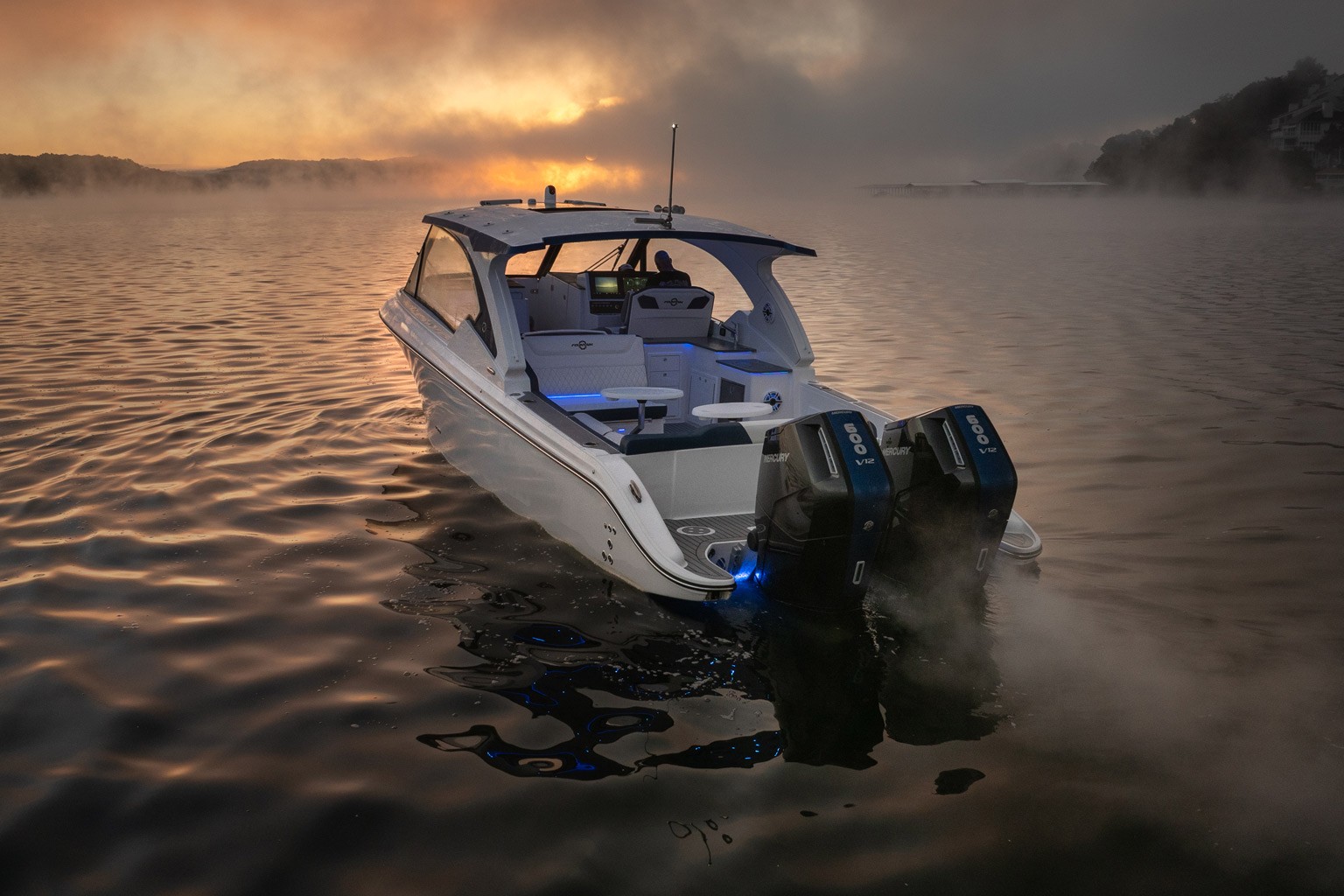

With walkable transom deck space, beautiful upholstery, and variety of deck layouts available, the Fountain 39DX is designed to be the perfect luxury offshore leisure experience

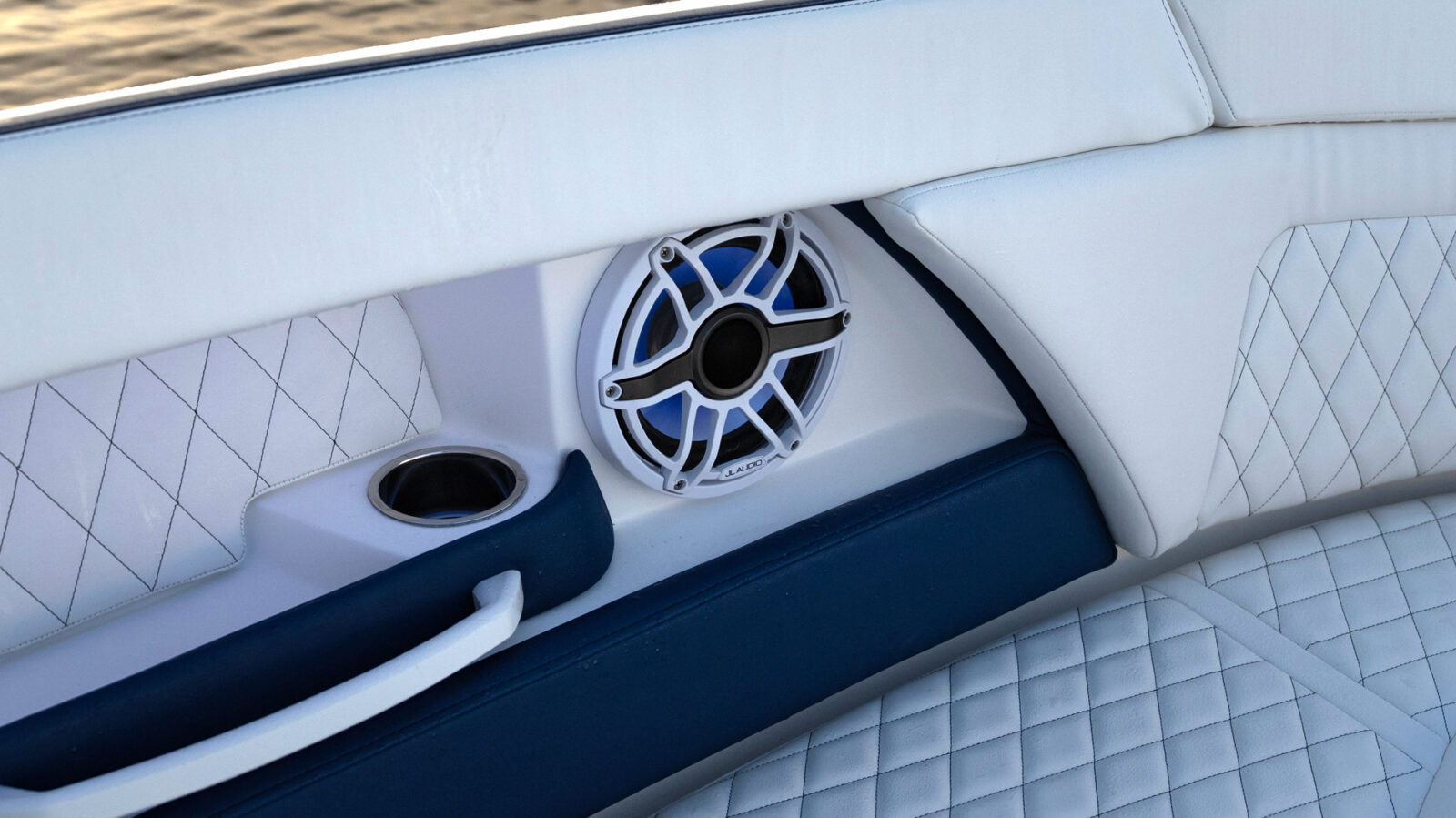

Studio quality acoustics: best in class JL audio system boats 16 speakers (14 speakers and 2 subwoofers) deliver perfect sound quality at any volume

Specifications

Length: 39'

Beam: 11'3"

Dry Weight (approx): 16,000 Lbs

Fuel Capacity: 425 Gal

Water Capacity: 40 Gal

Bridge Clearance: 98"

Draft (max drives down): 28”

Deadrise: 20.8°

Max HP: Mercury Triple 500Rs

Features

Mechanical & Electrical Features

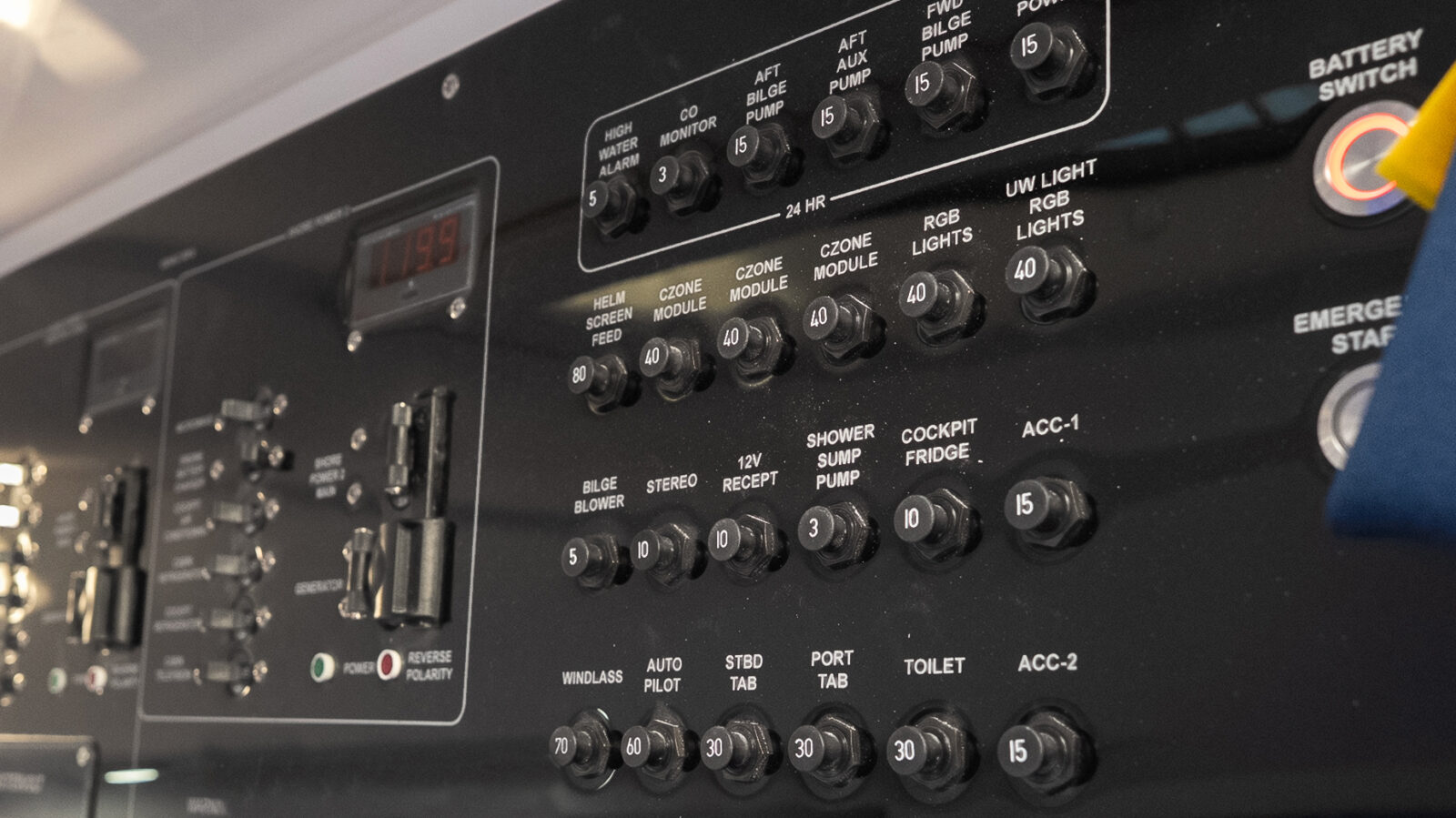

C-Zone Digital Switching
Fuel Filters - Mercury
Trim Tabs - Hydraulic, High Performance
Propellers - Mercury, Stainless Steel, Performance Matched
Engine Controls - Mercury DTS, Engine Trim
Steering - Mercury Electric/Hydraulic
Inverter - 110 Volt
Shore Power Inlet - 30 Amp, 110 Volt
Galvanic Isolator
Water Heater - 8 Gallon Tank
Fuel System - HD Aluminum, 425 Gallons, Painted for Corrosion Resistance, EPA Compliant
Bilge Pumps (3) - 1500 GPH, Float Switches by Ultra Safety Systems
Horn - Stainless Steel Dual Trumpet Horn
Wiring - Tinned, Color Coded
Windlass - Thru-Hull, Striker Plate
Anchor Locker - Integrated Bow Chute, Fresh & Raw Water Access
Rode Kit - 15' of 5/16" Galvanized Chain, 150' of 5/8" 8-Strand Braided
Anchor - Polished Stainless-Steel Plow
Electrical Outlets

Console Features
Engine Monitoring System - Mercury Vessel View 903 (or similar)
Garmin Electronics - Dual 16" GPSMAP - 8616 Displays
Transducer - Airmar B60
Hardtop and Console - Prewired Cable and Harness for 50WATT Garmin Dome Radar (radar not included as standard equipment)

Cockpit Features
Bow Seating - Wrap-Around Seating, with Filler Cushions
Bow Table - High/Low
Deck Cleats - Pull-Up SS (8)
Cup/Rod Holders (4) - Aft Gunwale Mounted
Cup Holders - Lighted, LED
Fresh & Raw Water Access - Starboard Side
Transom Pull-Out Shower
Transom Door - Starboard Side, Port Side with some Configurations
Transom Ladder - Safety, Slide-In
Dive Door - Starboard Side, Opens Inward, Folding Dive Ladder under Sole Hatch
Self-Bailing Cockpit
Lights - LED Courtesy and LED Strip Lights
Fish Box - (1) Cockpit Sole, 180 qts. with Diaphragm Discharge Pump
PlasDek Flooring
USB/USB-C Outlets
Hardtop - Molded with LED Lights, Electric Sliding Sunroof
Hardtop Supports - Fiberglass
Windshield - Forward and Side Panels, Glass
Sliding Center Panel for Through Bow Access
Windshield Wiper (2) with Washer
Helm - Starboard Side, Flush Mounted Screens, Storage Pocket
Helm Seat - Double Seat, Flip-Up Bolsters, Armrests
Compass, Magnetic
Galley, Starboard Side - Corian Countertops, Sink with Hot/Cold Water, Electric Grill, Deep Drawer Refrigerator, Storage Drawers, Trash Bin
PlasDek Flooring

Cabin Features
Air Conditioning
Countertops - Corian, Solid Surface
Entry Doors - Lockable
Storage Cabinets - Pre-finished Wood Veneer
PlasDeck Flooring

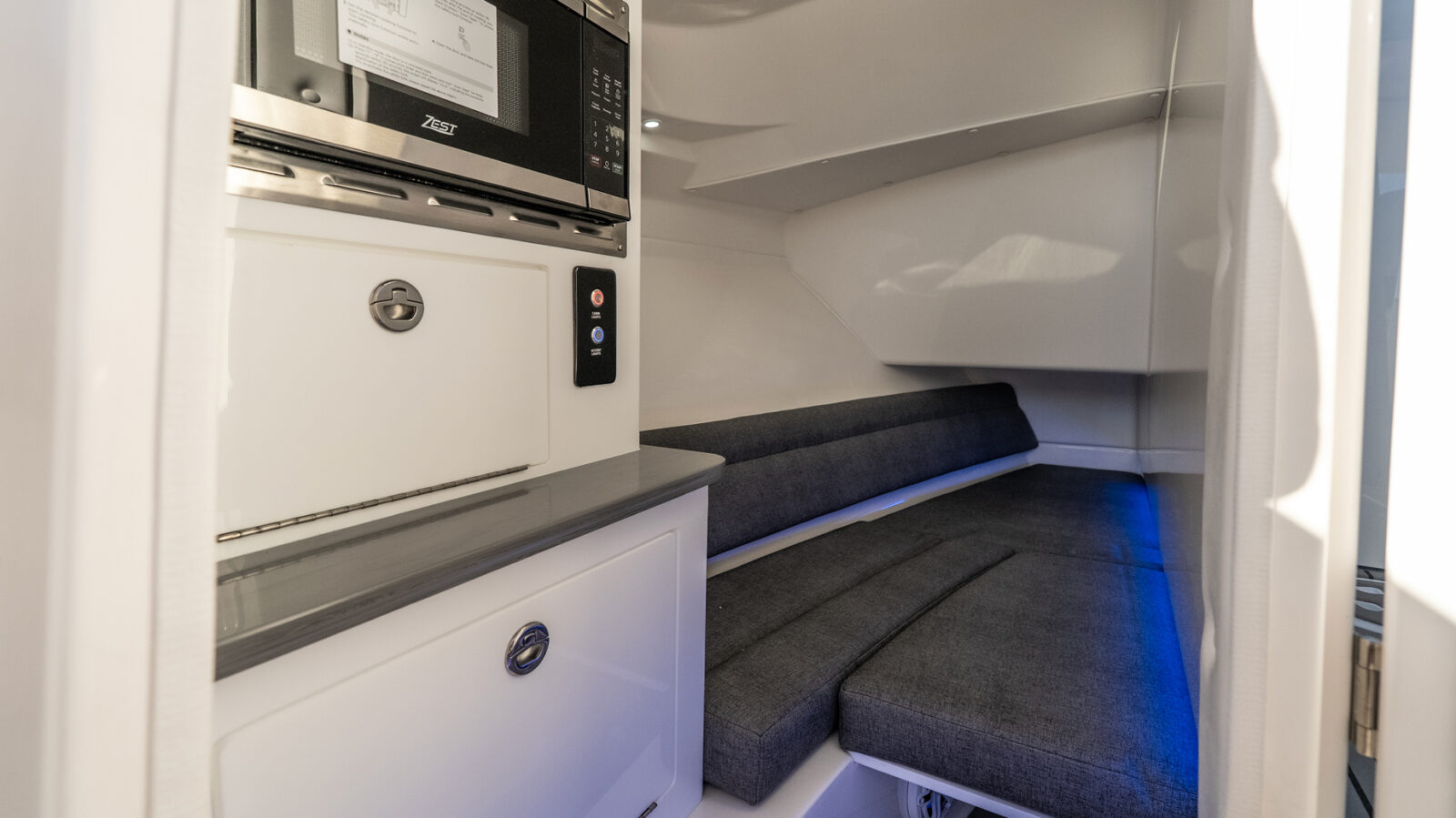

Berth - Port Compartment Features
Settee - Bench Seat Converts to Bunk with Filler Cushion
Mattress - Custom Twin Size, Comforter and Pillows
Microwave

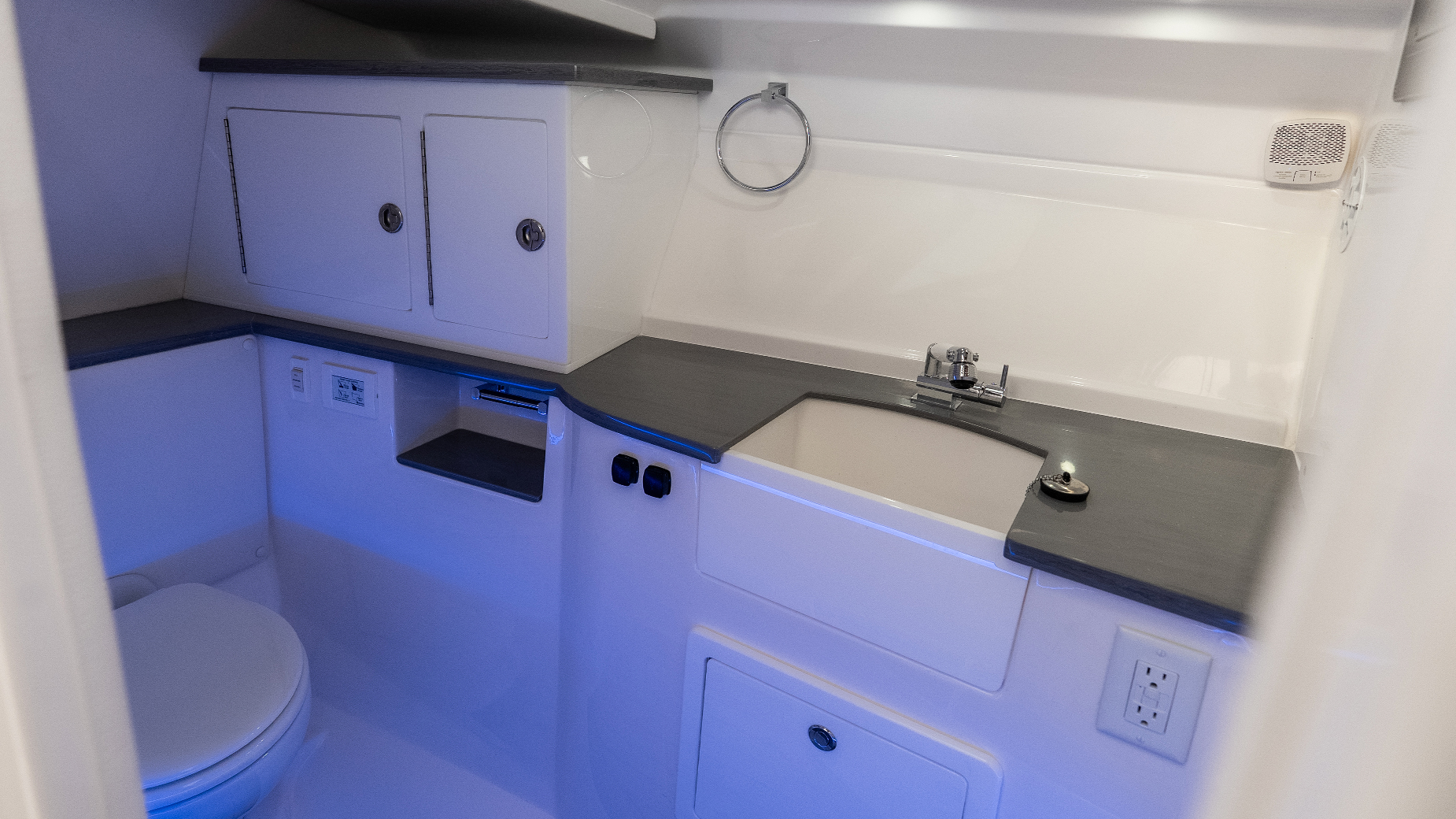

Head - Starboard Compartment Features
Toilet - Raw & Fresh Water Selectable, 20 gal. Holding Tank
Vanity - Sink with Hot/Cold Water
Shower - Pull-Out Handle
Towel Rack
Clothes Hooks
Mirror

Lights Features
Navigation Lights, LED
Spreader Lights (2) - On Hard Top, Aft
Courtesy Lights - Cockpit, RGB LED, Shadowcaster
Underwater Lights, RGB, Shadowcaster
Lightbar (2) - FWD facing on Hardtop, LED
Cabin - Lights - Overhead, Under-Valance, Courtesy Steps, LED

Batteries Features
Start Batteries (3) - AGM
DC System - House Battery (2) PC-1800
AC System - House Battery (3) PC-1800 [Unless Generator Option is Selected, then Genset Replaces these 3 Batteries]
Charging System - All Batteries, Automatic

Construction

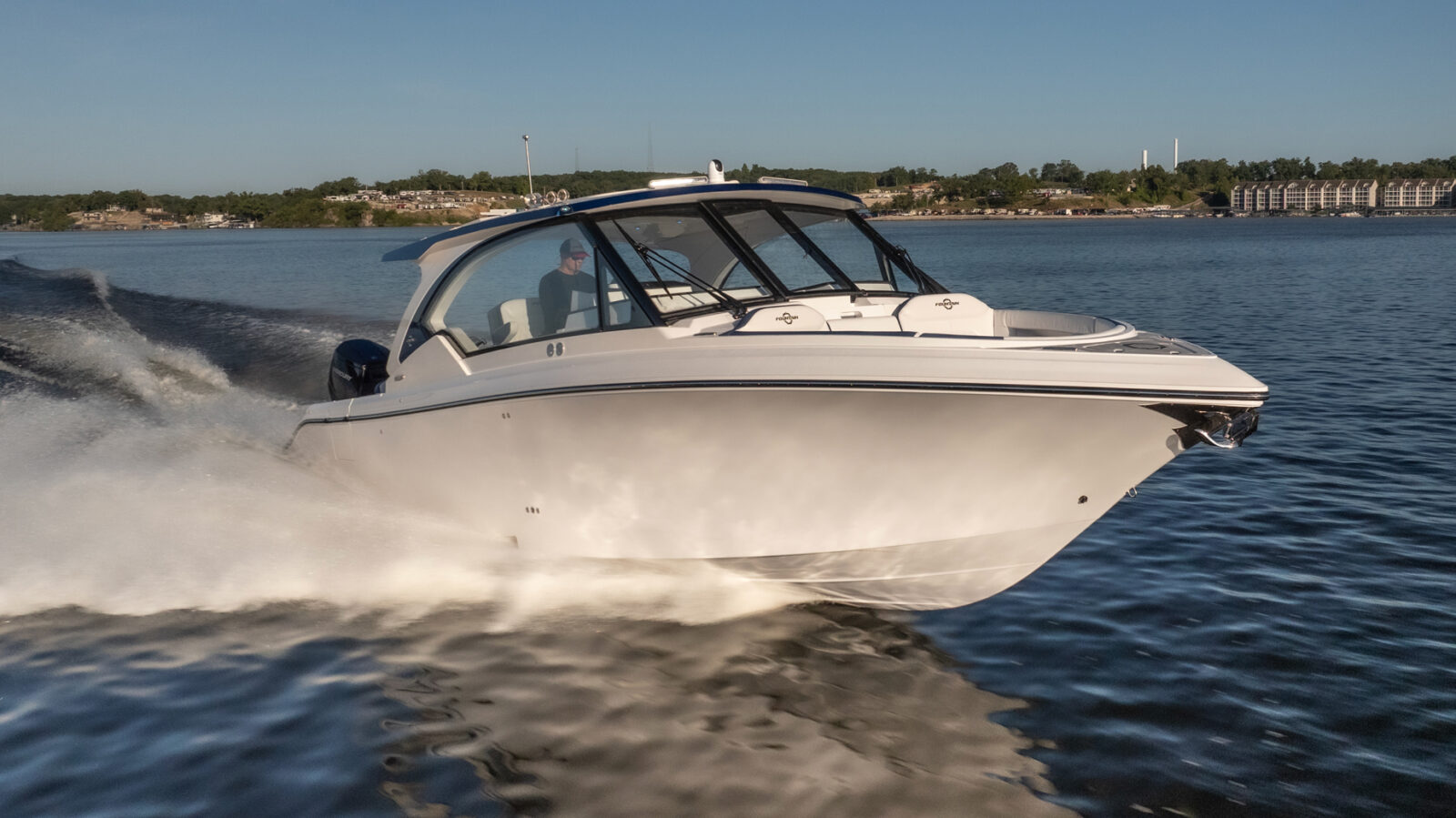

Positive Lift Hull - Double Step, Pad Keel, Notch Transom

Stringer Grid - Coosa Board and Fully Encapsulated Fiberglass

Deck Inner Liner - Fiberglass, Self-Bailing, Anti-Skid Deck

Bonded - Deck, Stringer Grid, Hull, Cabin Liner

Composite Cored - High-Density Hull Sides and Deck

Infused Hardtop

Electronics

Audio Features
Fusion RA770 Media Control System
Amplifier - (2) 800-Watt, 8 Channel
Amplifier - (1) 1000-Watt, Mono
Speakers (6) - M Series Coaxial, 7.7" RGB
Speakers (8) - M Series Coaxial, 8.8" RGB
Speaker (1) - Subwoofer, M Series, 10" RGB
Speaker (1) - Subwoofer, M Series, 12" RGB

Fishing

Colors & Graphics

Hull Color Options
Hull Blue Test
Hull Red Test
Hull Green Test

Cockpit Color Options
Test Cockpit Color Options 1
Test Cockpit Color Options 1
Test Cockpit Color Options 1

Engine Color Options
Engine Color Options
Engine Color Options
Engine Color Options

Standard Gel Options
Standard Gel Options

Paint Color Option
Paint Color Option
Paint Color Option
Paint Color Option

Graphics Package Option
Graphics Package Option

Upholstery Color Option
Upholstery Color Option
Upholstery Color Option

Options

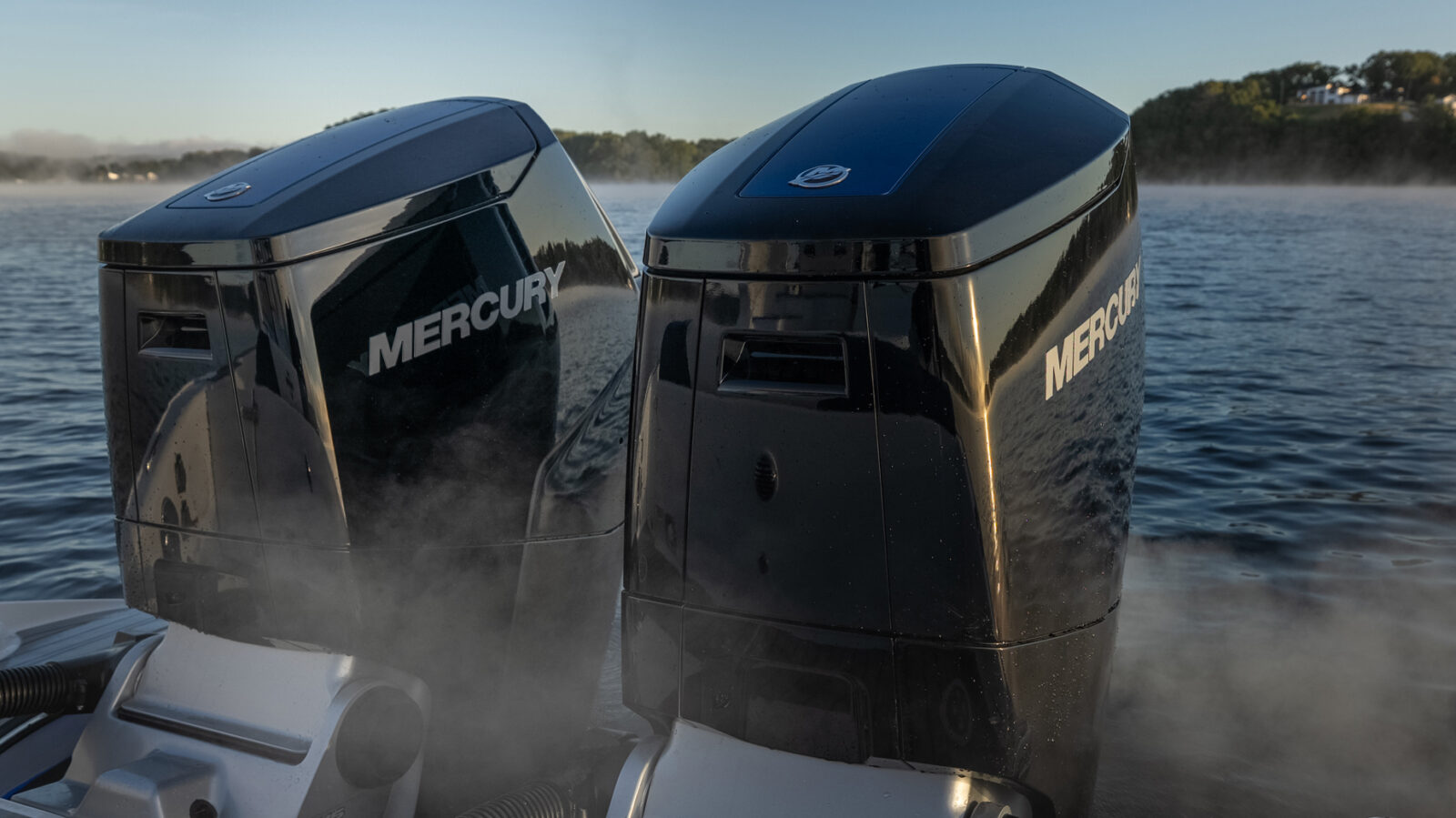

Power Option
Mercury Triple Verado 300M
Mercury Triple Verado 300R
Mercury Triple Verado 400M
Mercury Triple Verado 400R - With "HD" Gearcases
Mercury Triple Verado 500R - With R Drive "CS" Gearcases

Outrigger Bases - Gemlux BA-12, Pair

Outrigger Poles - Gemlux 16' Deluxe Internally Rigged Hybrid Carbon Fiber

Outrigger Poles - Gemlux 18' Deluxe Collapsible Hybrid

Electric Reel Outlets (2) - Aft

Console & Helm Line Item
AIS 800 Blackbox Transceiver
Autopilot - Hydraulic, Full Function (Controlled from Garmin Screens)
Autopilot Controller - Dash Mounted, GHC50
Dome Radar 50Watt Fantom - Black
Dome Radar 50Watt Fantom - White
Open Array Radar - 120WATT, 4' Beam (white only)
Open Array Radar - 250WATT, 4' Beam (white only)
Open Array Radar - 50WATT, 4' Beam (white only)
Standard Twin Garmin 16" Screens (8616)
Garmin VHF Radio and Antenna with Remote Mic 315

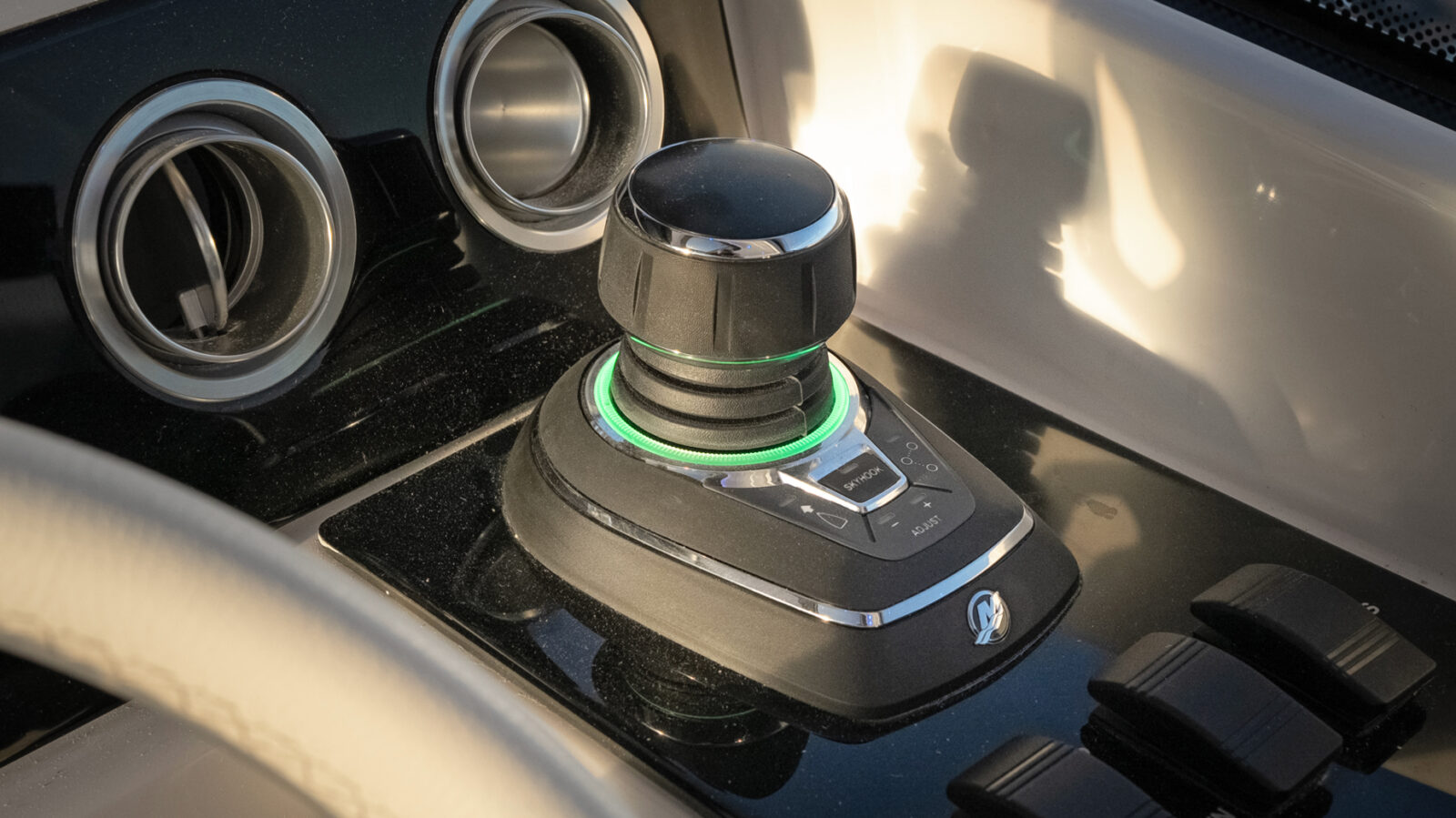

Joystick Steering for Triple Engine, Mercury JPO Electric Steering (Autopilot Included)
Standard Twin 600s Electric Steering Package with JPO
Standard Hydraulic Mercury Steering
Stainless Steel Wheel with "Speed Knob"
Stitched, Leather Wrapped Steering Wheel - Black
Stitched, Leather Wrapped Steering Wheel - White
Nite Track - Night Vision Camera (black unit)
Nite Track - Night Vision Camera (white unit)

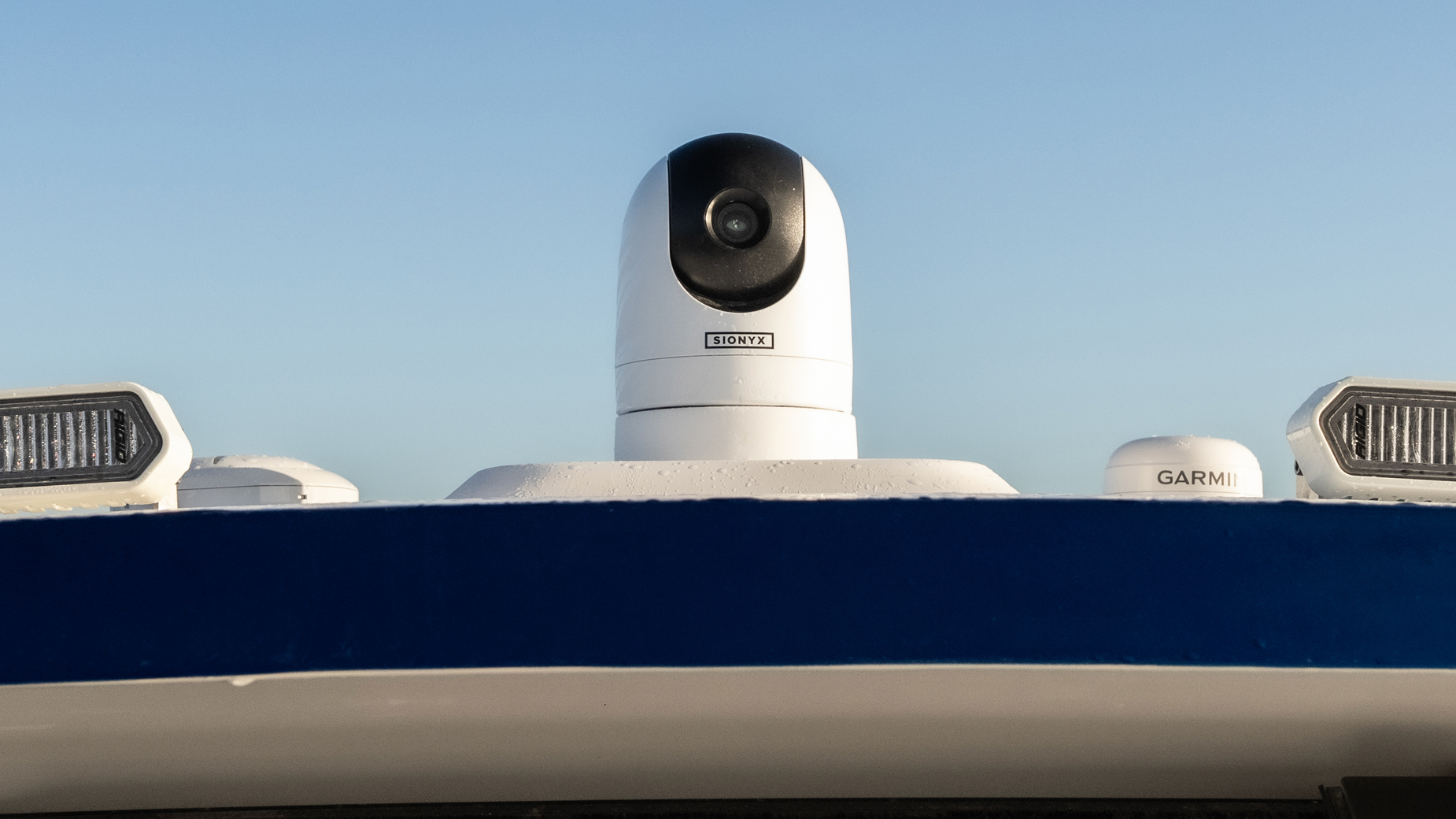

Sionyx Nightwave Ultra Low Light Camera
Transducer B175H - in Lieu of B60
Transducer B175L - Additional
Wireless Phone Charger - Dash Mounted (Holds Phone in Place)

Tops & Enclosure Line Item
Sailshade - FWD Cockpit, Black
Sailshade - FWD Cockpit, Light Gray
SureShade - Electric, Aft of T-Top with Black Fabric
SureShade - Electric, Aft of T-Top with Light Gray Fabric
SureShade - Electric, Aft of T-Top with Linen Fabric

Comfort & Convenience Line Item
Cockpit Air Conditioning - 16,000BTU Dometic Unit for Cockpit (Requires Generator)
Cockpit Air Conditioning - Route 6,000 BTU standard unit to Cabin and Cockpit air
Fender Attachments (6) - Quick Release Push Pin Locks
SeaKeeper3 Gyrostabilizer
Shower Head - Mounted Flush on the Underside of the Hardtop

Furniture & Flooring Line Item
Standard Package 1 - Salon Area Includes Lounge Seat with Removable Table / Aft Cockpit Includes Transom Bench Seat with "L" Shape Lounge Seat
Standard Package 2 - Salon Area Includes FWD Bolster Seat and "L" Shape Lounge Seat with Removable Table / Aft Cockpit Includes Transom Bench Seat
Cocktail Lounger - Salon Area Includes Lounge Seat with Removable Table / Aft Cockpit Includes Wrap-Around Lounge Seating with 2 Removable Tables
Sport Fish Package - Salon Area Includes FWD Bolster Seat and "L" Shape Lounge Seat with Removable Table / Aft Cockpit Includes two 55gal. Transom Livewells with Removable Livewell Seat and Tackle Center and Rocket Launcher Rod Holders on Hardtop

Hardware & Lighting Line Item
Bow Thruster
Engine Flushing System - Reverso, Automatic Outboard, TRIPLE Engine
Generator - 5KW, Fischer Panda Diesel
Generator - 8KW, Fischer Panda Diesel

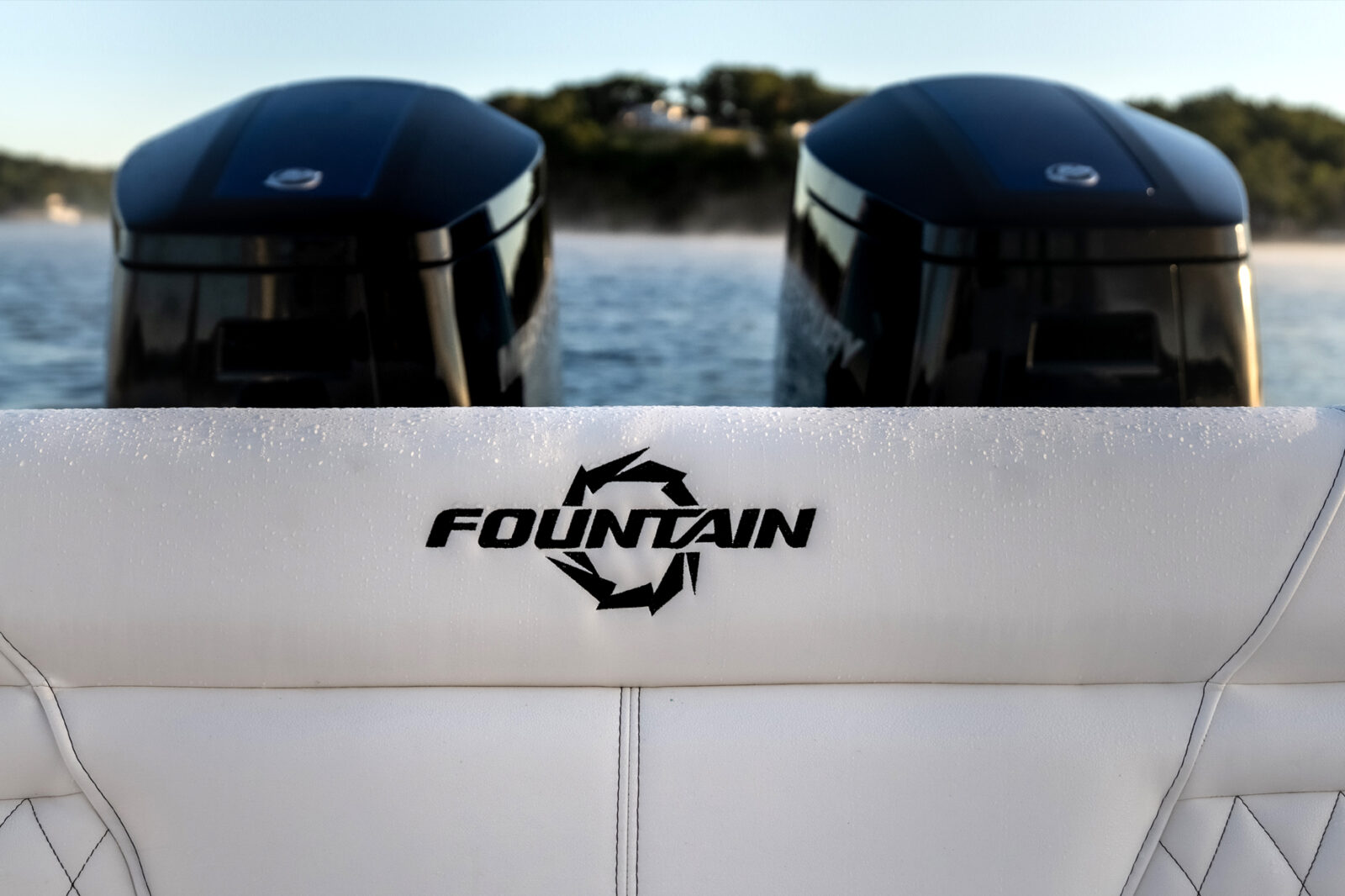

Pure muscle.

Mercury Racing is Fountain’s exclusive power partner, unleashing performance that leaves the competition in your wake. Each boat is tuned to perfection at our Washington, NC facility, which creates an unmatched hull-to-power ratio that squeezes every ounce of performance from Mercury’s race-bred turbos and superchargers.
